Checking Radiator Hoses and Clamps

1. Park machine safely.

2. Raise hood.

3. Remove right and left-hand side panels.

4. NOTE: Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.


   LV25540-UN-03JUN16


   LV25746-UN-05JUL16

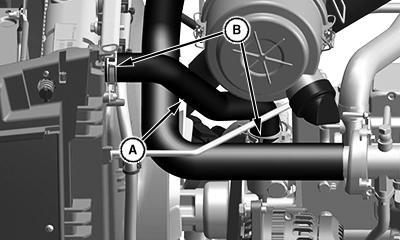

   A - Upper Radiator Hose

   B - Hose Clamps

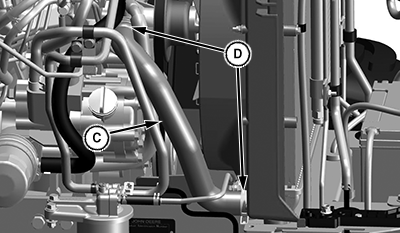

   C - Lower Radiator Hose

   D - Hose Clamps

   Check upper radiator hose (A) for damage or cracking. Replace if necessary.

---




5. Check hose clamps (B) as needed.

6. Check lower radiator hose (C) for damage or cracking. Replace if necessary.

7. Check hose clamps (D) as needed.

8. Install right and left-hand side panels.

9. Lower hood.
