Replacing Relays and Fuses

IMPORTANT: Avoid damage! The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same Amp rating.


Locating Fuses and Relays

All electrical circuits are protected by fuses. ampere rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuses

Fuse Rating

Color

10 Amp

Red

15 Amp

Blue

20 Amp

Yellow

30 Amp

Green


Fuse Location—Under Hood Cowl

  1. LV25563
    LV25563-UN-13JUN16

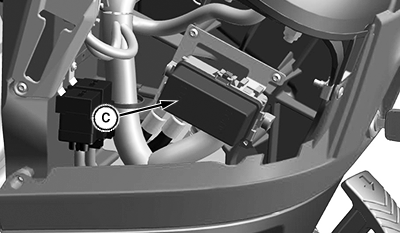

    LV25564
    LV25564-UN-23AUG16

    A - Hood Cowl Latch

    B - Hood Cowl

    C - Load Center Cover

    Park machine safely.


  2. Open hood.

  3. Pull hood cowl latch (A) out and up on both sides.

  4. Remove hood cowl (B).

  5. Remove load center cover (C).

  6. Identify fuse or relay in fuse block.

  7. Pull defective relay or fuse out.

  8. Replace with new relay or fuse.

  9. Install load center cover.

  10. Line up hood cowl and gently slide into place.

  11. Close hood.


Fuse Location—Right of Seat

  1. Park Machine Safely.

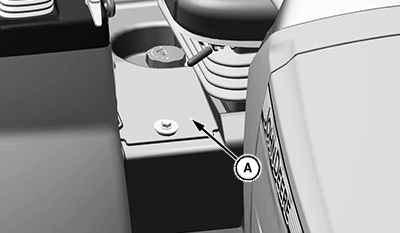

  2. LV26195
    LV26195-UN-07SEP16

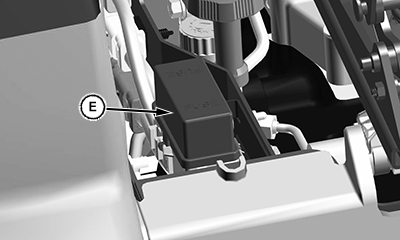

    LV25567
    LV25567-UN-15JUN16

    Remove bolt, washer and cover (D).
  3. Remove load center cover (E).
  4. Identify fuse or relay in fuse block.
  5. Pull defective relay or fuse out.
  6. Replace with new relay or fuse.
  7. Install load center cover.
  8. Install cover (D). Secure with washer and bolt.

Fuse and Relay Size and Function

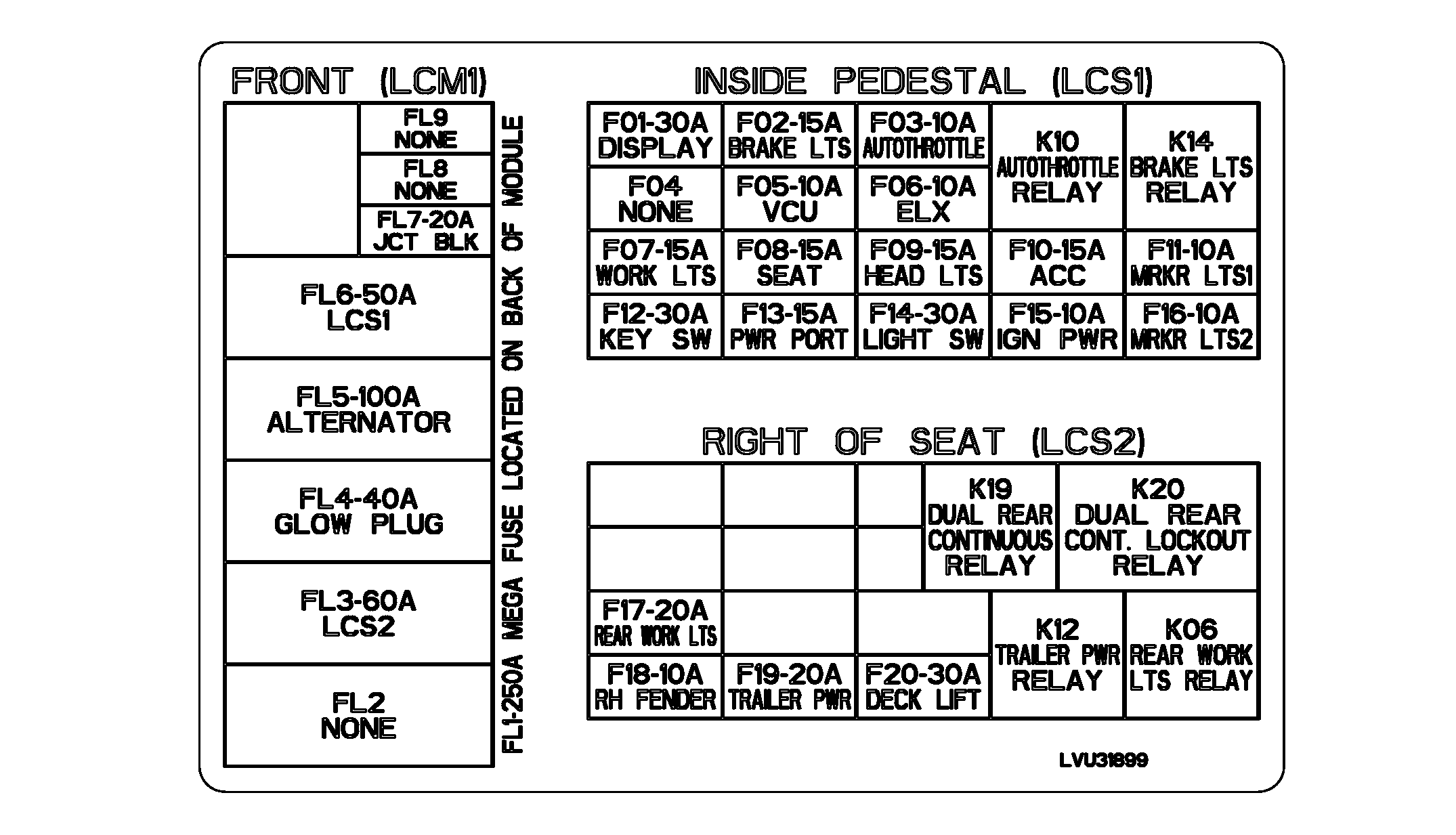

LV25749
LV25749-UN-05JUL16

Fuse Label

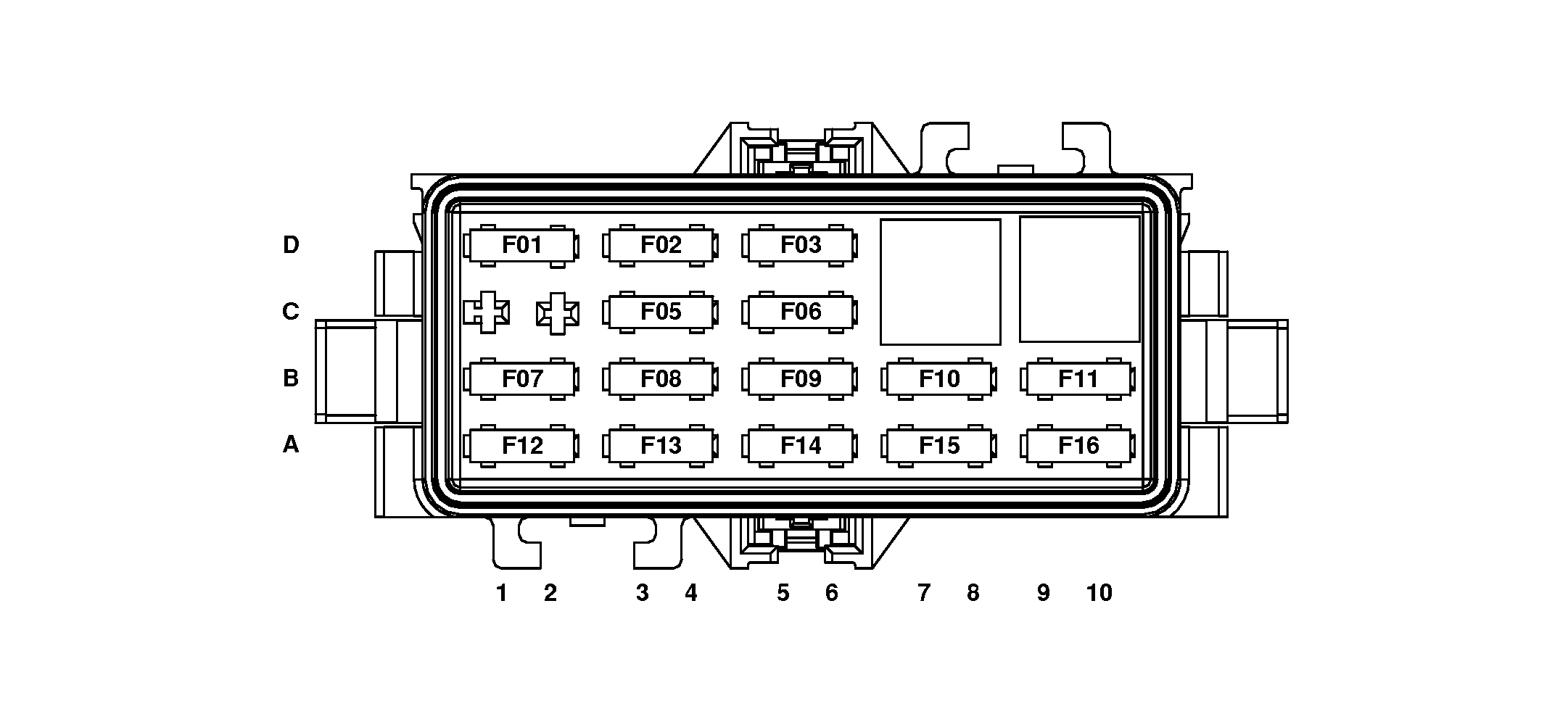

LV25088
LV25088-UN-02MAY16

Load Center 1

F01 - Display (30A)

F02 - Brake Lights (15A)

F03 - Auto Throttle (10A

F05 - VCU Fuse (10A)

F06 - ELX Fuse (10A)

F07 - Work Lights Fuse (15A)

F08 - Seat (15A)

F09 - Head Lights (15A)

F10 - Accessory Fuse (15A)

F11 - Marker Lights 1 / License (10A)

F12 - Key Switch Fuse 30A)

F13 - Power Port (15A)

F14 - Light Switch (30A)

F15 - Ignition Power (10A)

F16 - Marker Lights 2 (10A)

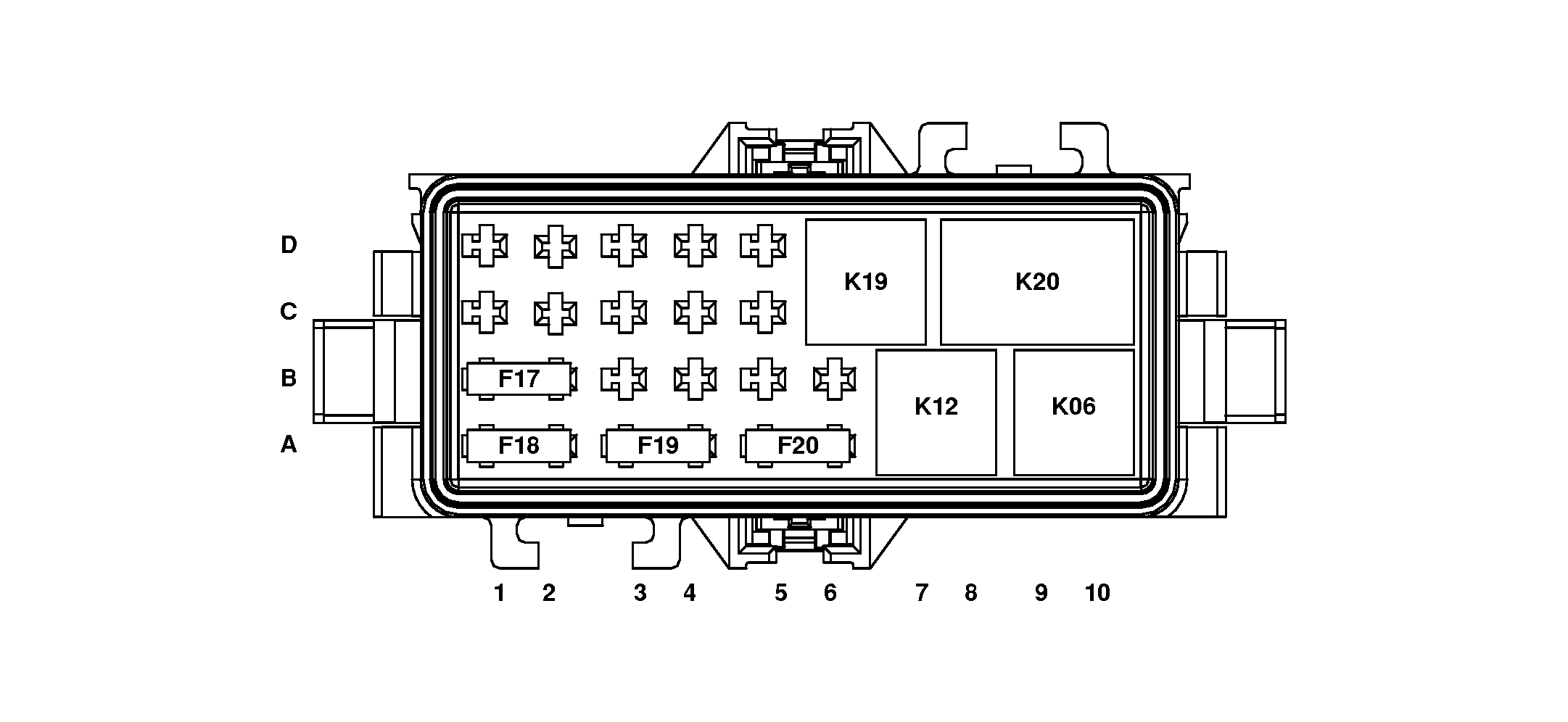

LV25089
LV25089-UN-02MAY16

Load Center 2

F17 - Rear Work Lights (20A)

F18 - Right Hasnd Fender (10A)

F19 - Trailer Power (20A)

F20 - Deck Light (30A)

K06 - Rear Work Light Relay

K10 - Auto Throttle Relay

K12 - Trailer Power Relay

K14 - Brake Lights Relay

K19 - Dual Rear Continuous Relay

K20 - Dual Rear Continuous Lockout Relay

UP00731,0000269-19-20160907
