Lubricating 3-Point Hitch

LV25751
LV25751-UN-07JUL16

LV25752
LV25752-UN-07JUL16

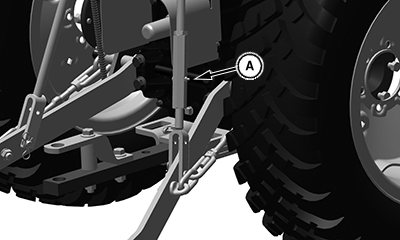

A - Lift Link Grease Fitting

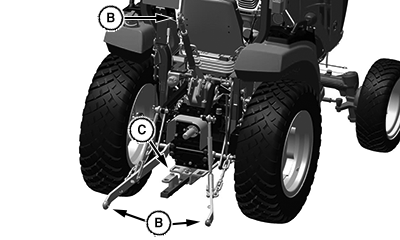

B - Ball Joints

C - Drawbar

  • Lubricate lift link grease fitting (A) with recommended grease or equivalent.
  • Lubricate ball joints (B) and drawbar (C) with SUPER LUBE® lubricant.1

1 SUPER LUBE is a registered trademark of Synco Chemical Corp.

UP00731,000026D-19-20160705
