Adjusting Implement Side-to-Side Sway

IMPORTANT: Make sure sway chains are tightened properly. When using certain implements, damage can occur to the sway link anchor point if not properly tightened.

NOTE: Check implement operator’s manual procedure for adjusting sway links. When sway links have been properly adjusted, side sway of implement is controlled by position of links. A small amount of sway, 13—25 mm (1/2 - 1 in.), is needed for many implements.

Use left and right sway links (A) to adjust 3-point hitch implement side-to-side sway:

  1. Park machine safely.

  2. Lower any rear mount implement to the ground.

  3. Loosen locknut (B).

  4. LV25673
    LV25673-UN-03AUG16

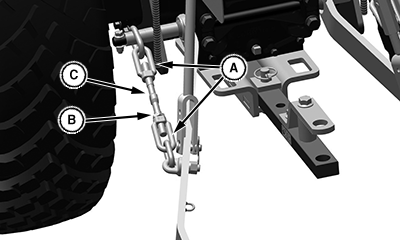

    A - Sway Link

    B - Locknut

    C - Sway Link Adjusting Rod

    Rotate sway link adjusting rod (C) to adjust 3-point hitch implement side-to-side sway.


  5. Tighten locknut (B).
