Pushing or Towing Machine

CAUTION: Avoid Injury! Never tow machine faster than 16 km/h (10 mph). If possible, have someone operate steering and brakes of towed tractor.

IMPORTANT: Avoid damage! Push or tow machine for short distances only.

1. Push the PTO knob to the disengaged/off position.

2. Disengage the differential lock.

3. Disengage park brake.

4. Move the transmission range shift lever to the N (neutral) position.

5. Disengage the MFWD.

6. Tow machine using the appropriate towing point.

Tow Points

Below are a list of the tow points.

•
  LV25917-UN-08SEP16

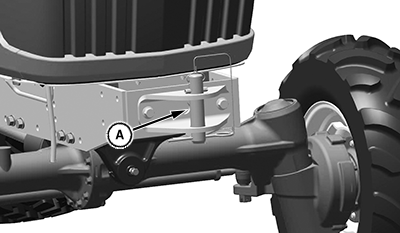

  Front Tow Hitch


  LV26038-UN-07SEP16

  Front Tow Hitch with Weight Bracket

  A - Front Tow Hitch

  Front Tow Point—Use the front tow hitch (A).

---

•
  LV25918-UN-03AUG16

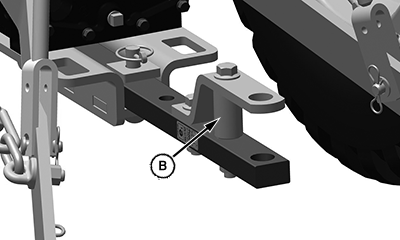

  Rear Drawbar / Tow Hitch

  B - Rear Drawbar / Tow Hitch

  Rear Tow Point—Use the rear drawbar / tow hitch (B).

---
