Using Dual Rear Selective Control Valve (SCV)—If Equipped

This machine can be equipped with an optional dual rear selective control valve outlet kit to operate hydraulically driven implements from outlets at the rear-mount position.

The machine-mounted hydraulic outlets are female quick couplers.

I Rear Outlet Selective Control Valve

•

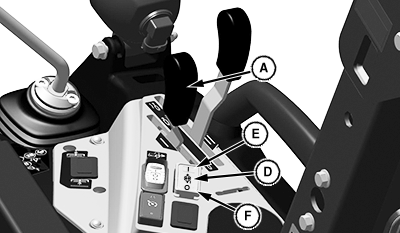

  LV25999-UN-15AUG16

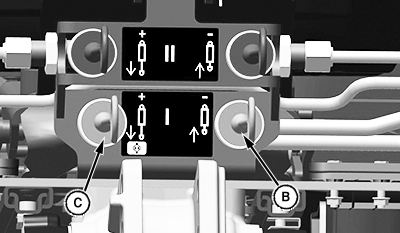

  LV26000-UN-15AUG16

  A - 1 Rear Selective Control Valve Lever

  B - Retract Outlet

  C - Extend Outlet

  D - Continuous Flow Switch

  E - On Position

  F - Off Position

  Pull I rear selective control lever (A) rearward to allow flow from the circuit out through outlet (C) and return to the machine through outlet (B).

---

• Push I rear selective control lever (A) forward to allow flow from the circuit out through outlet (B) and return to the machine through outlet (C).

Using the Continuous Flow Switch (I Rear Outlet SCV)

The 1 rear outlet SCV may be operated in a momentary condition to operate attachments such as extending or retracting a hydraulic cylinder. The attachment will receive full hydraulic flow in direct response to the use of the control switch.

• The continuous flow switch (D) will supply continuous flow to the I rear selective control valve. To operate the continuous flow:
  • Depress the continuous flow switch to the on position (E) to activate. Pull rearward on control lever (A). Once activated, “Continuous Flow On” will be displayed in the information display screen.
  • Depress the continuous flow switch to the off position (F) to deactivate.

II Rear Outlet Selective Control Valve

•

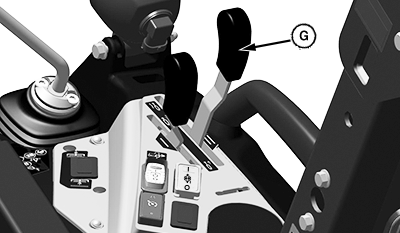

  LV26001-UN-15AUG16

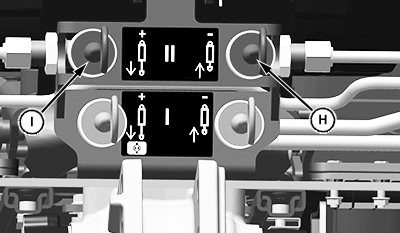

  LV26002-UN-15AUG16

  G - II Rear Selective Control Valve Lever

  H - Retract Outlet

  I - Extend Outlet

  Pull II rear selective control lever (G) rearward to allow flow from the circuit out through outlet (I) and return to the machine through outlet (H).

---

• Push the II rear selective control lever (G) forward to allow flow from the circuit out through outlet (H) and return to the machine through outlet (I).

Float Position (II Rear Outlet SCV)

“Float” operation allows cylinder to extend and retract freely, such as when an implement follows ground contour.

• Push lever forward, through retract, into detent to operate “float” feature.
• Manually return lever to neutral when “float” is no longer required.
