Storing Front 3-Point Hitch—If Equipped

1. NOTE: Lift arms are to be removed when front hitch is not in use.

   The front hitch should be put into storage position when the front loader is being used.

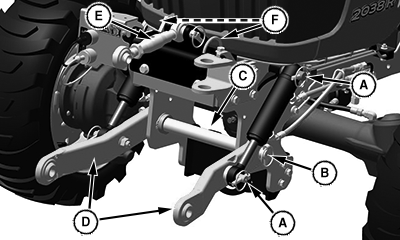

   LV25802-UN-27JUL16

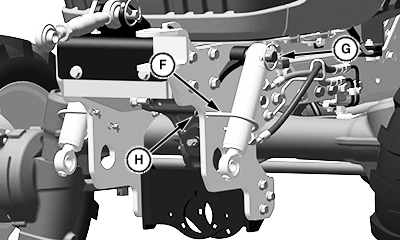

   LV25801-UN-27JUL16

   A - Quick Lock Pin

   B - Quick Lock Pin

   C - Front Shaft

   D - Lift Arms

   E - Center Link

   F - Front Hitch Storage Bracket

   G - Hitch Pin

   H - Spring Clip

   Remove cylinder from lift arms by removing quick lock pins (A).

---




2. Remove quick lock pin (B).

3. Remove front shaft (C) from brackets.

4. Remove lift arms (D).

5. Remover center link (E) from bracket.

6. Remove front hitch storage bracket (F).

7. Replace hydraulic cylinder on hitch pin (G) and secure with quick lock pin.

8. Retain hydraulic cylinder to the front bracket using storage bracket (F) and spring clips (H).
