Operating eThrottle

NOTE: The use of eThrottle is not recommended during PTO applications. With eThrottle engaged, constant PTO RPM cannot be maintained, which will result in reduced performance of implement.

LV26006
LV26006-UN-18AUG16

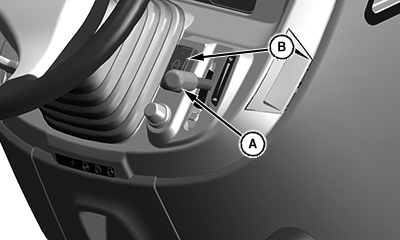

Throttle Lever

A - Throttle Lever

B - eThrottle Switch

Using eThrottle enables the operator to increase or decrease the speed of the engine and tractor by using the forward and reverse travel pedals.

  1. Pull throttle lever (A) towards rear of machine to set engine speed to low idle.
  2. Push eThrottle switch (B) to the “I” position to engage.
  3. Push eThrottle switch to the “O” position to disengage.

UP00731,00002E0-19-20160907
