Instrument Cluster

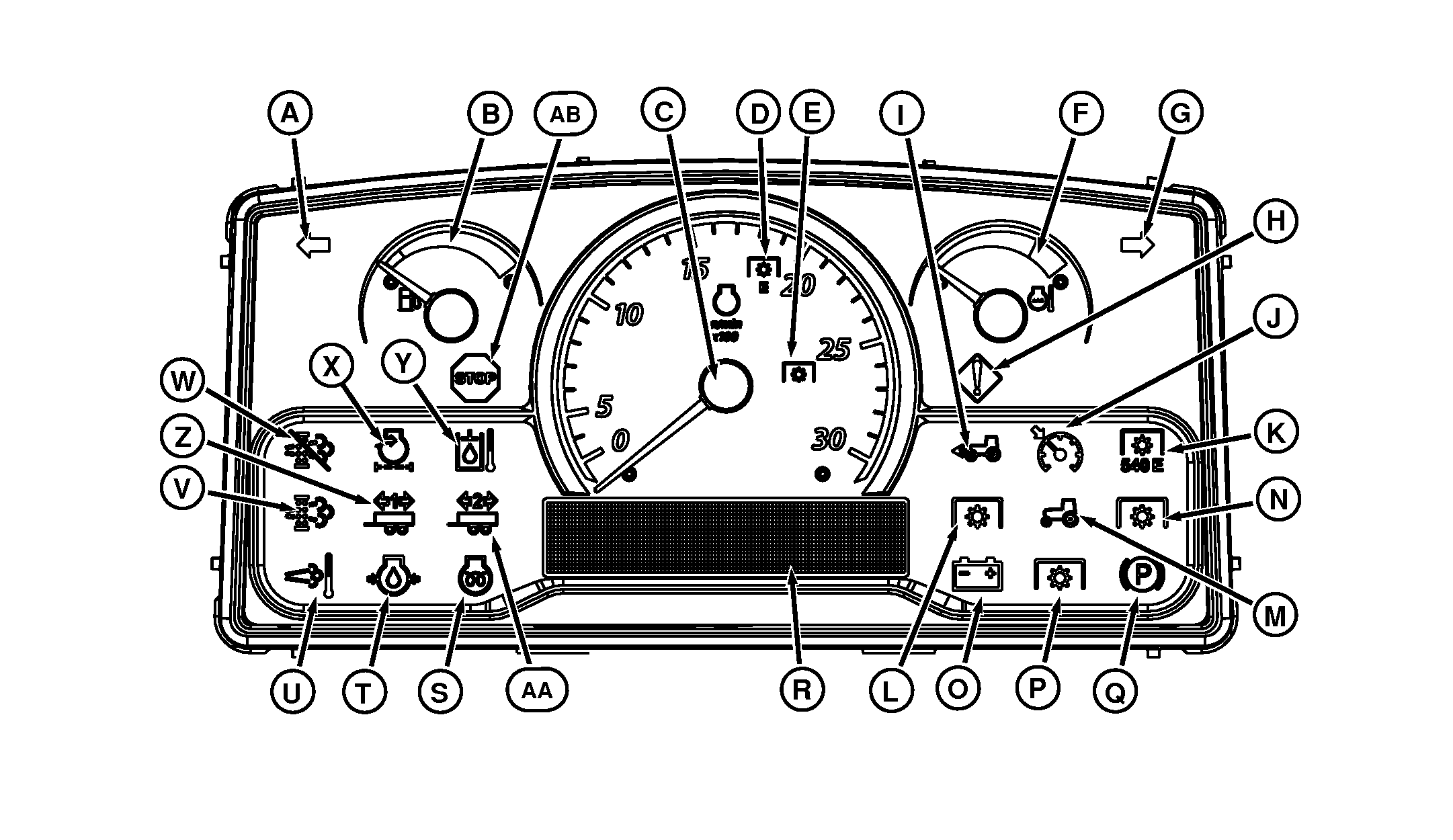

Instrument Control Panel

LV25927-UN-08AUG16

Instrument Control Panel

B - Fuel Gauge - This gauge displays approximately how much fuel in tank.

C - Tachometer - Shows engine speed. Engine speed is shown in 100’s.

D - Rated Economy PTO Speed - Not used.

E - Rated PTO Speed - This mark indicates the rated PTO speed setting for 540 PTO.

F - Engine Coolant Temperature Gauge - This gauge indicates the temperature of the cooling system.

G - Right Turn Signal/Warning Flasher Indicator Icon - This indicator light will turn on and flash when the turn signal switch is moved to the right turn position, when the hazard lights are on, or when the headlights/taillights are in the ON position..

H - Service Alert Indicator Icon - Light flashes indicating performance or operational problem is detected that needs to be resolved as soon as possible.

I - Front-Wheel Drive Indicator Icon - Illuminates when front-wheel drive is switched on.

J - Cruise Control Switch Icon - Illuminates when cruise control is switched on.

K - 540E PTO Indicator Icon - Not used.

L - Front PTO Indicator Icon- Not used.

M - PTO Indicator Icon - Not used.

N - Rear PTO Indicator Icon - Not used.

O - Alternator/Battery Charging Icon - Illuminates when the ignition key is in the ON position and the engine is not running. It also indicates an electrical load has exceeded alternator capacity and continued operation could deplete battery reserve.

P - Mid PTO Indicator Icon - Illuminates when the Mid PTO is engaged.

Q - Parking Brake Light- Flashes when operator exits seat without first setting park brake.

R - Information Display Screen - Displays selected operational information; hour meter, engine speed, and PTO speed. Shows informational or alarm messages and on-board diagnostic information.

S - Engine Intake Air Heater Icon - Illuminates when the operator pushes in the ignition key to activate the intake air heater.

T - Engine Oil Pressure Icon - Illuminates when there is insufficient engine oil pressure to continue operation.

U - High Exhaust Temperature Icon - Not used.

V - Exhaust Filter Indicator Icon - Not used.

W - Auto Cleaning Disabled Indicator Icon - Not used.

X - Air Filter Restriction Icon - Illuminates when air cleaner element is clogged, indicating air element needs to be cleaned or replaced.

Y - Hydraulic Oil Temperature Icon - Illuminates when the hydraulic oil temperature is overheated (If equipped).

Z - Trailer 1 Indicator Icon - Starts flashing when trailer turn signal or hazard warning lights are switched on.

AA - Trailer 2 Indicator Icon - Starts flashing when trailer turn signal or hazard warning lights are switched on.

AB - STOP Indicator Icon - Light flashes when a serious malfunction is detected.

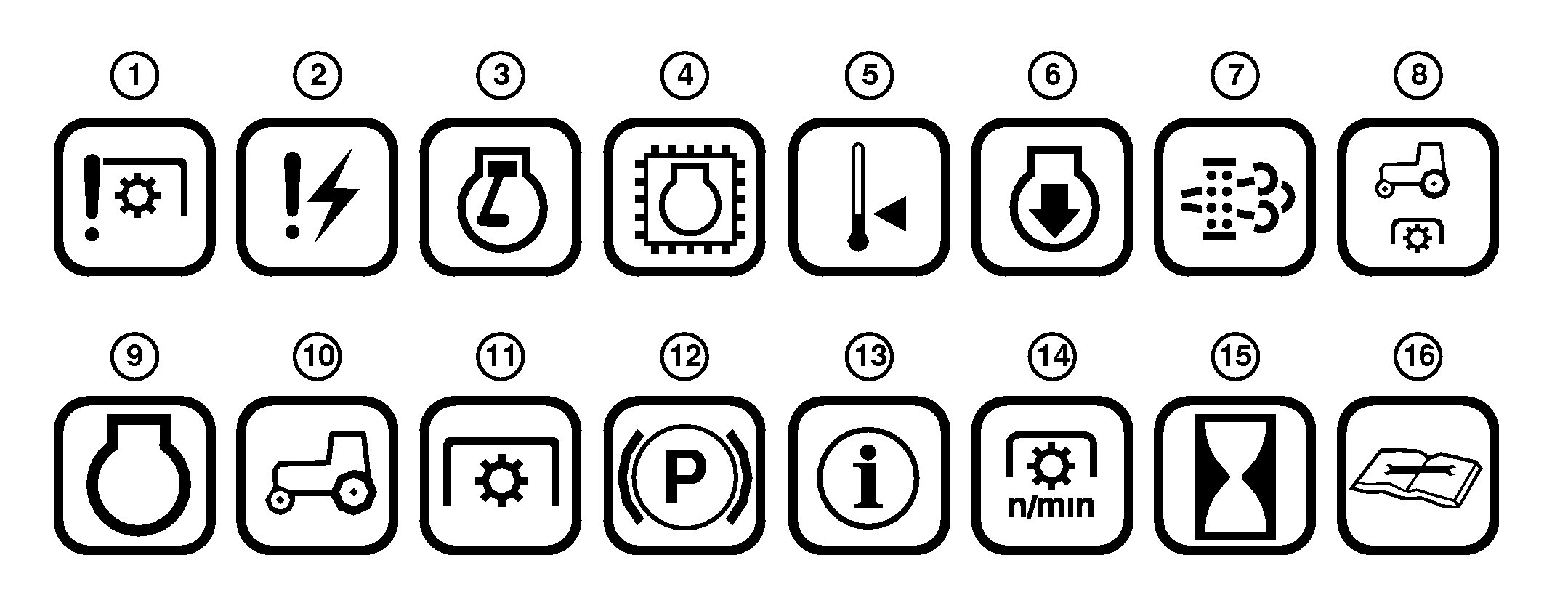

Information Display Icons

The following icons will show up in the information display screen.

LV26012-UN-25AUG16

Information Display Icons

1 - Shut PTO Off Icon - Illuminates when the condition requires the PTO shut off.

2 - Electrical Fault Icon - Illuminates when an electrical fault is present. May be accompanied by a display message.

3 - Engine Run Fault Icon - Illuminates when the operator attempts to engage the starter when the engine is already running. May be accompanied by a display message.

4 - ECU Regeneration Inhibited Icon - Not used.

5 - Engine Cold Icon - Not used.

6 - Reduce Engine Speed Icon - Not used.

7 - Diesel Particulate Filter—Exhaust Filter Icon - Not used.

8 - Mid PTO Icon - This symbol is associated with the display of Mid PTO speed.

9 - Engine Icon - This symbol is associated with the display of engine hours.

10 - Tractor Side View Icon - This symbol is associated with the display of vehicle hours.

11 - PTO Icon - This symbol is associated with the display of PTO hours.

12 - Apply Park Brake Icon - Flashes when the desired operation requires the Park Brake to be set.

13 - Important Icon - This symbol is associated with information feedback to operator.

14 - PTO Speed Icon - This symbol is associated with the display of PTO speed (mid or rear).

15 - Hour Meter Icon - Illuminates when the engine or PTO hour information is shown on the information display panel.

16 - Service Alert Icon - Illuminates when there is an active error shown on the information display panel. May be accompanied by a display message.
