Using Seat Belt

CAUTION: Avoid Injury! Always wear seat belt when operating machine with folding roll-over protective structure (ROPS) in upright position. Do not jump from machine if machine tips.

If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.


Fasten Seat Belt

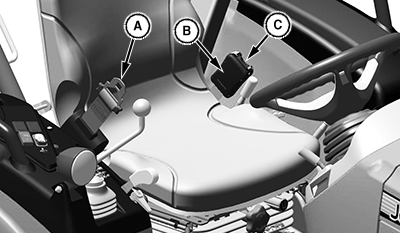

  1. LV26025
    LV26025-UN-01SEP16

    A - Seat Belt

    B - Latch

    C - Red Button

    Extend self-retracting seat belt (A) and insert into latch (B) on opposite side of seat. Seat belt is self-retracting and will automatically adjust to fit operator.

Release Belt

  1. Press red button (C) on latch (B) to release seat belt end.

UP00731,00002EF-19-20160901
