Operating Rear Selective Control Valve (SCV) Lock Lever

  • LV26030
    LV26030-UN-02SEP16

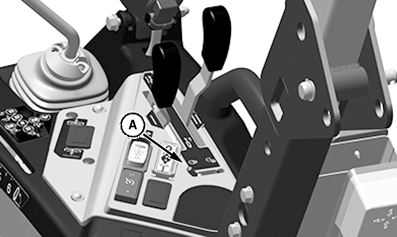

    A - Rear SCV Lock Lever

    Move the rear SCV lock lever (A) to the unlocked position to allow SCV lever movement. Operation of the SCV is unlocked.
  • Move the rear SCV lock lever (A) to the locked position to prohibit SCV lever movement. Operation of the SCV is locked.

UP00731,00002FF-19-20160902
