Front Loader Mounting Frames, Installation

1.

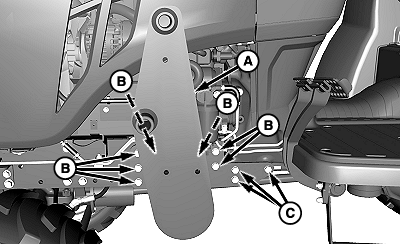

   W27097-UN-27OCT15

   Left-Hand Side Shown

   A - Mounting Frame

   B - Cap Screw and Washer, M12 x 70 (7 per side)

   C - Cap Screw and Washer, M12 x 40 (3 per side)

   Install mounting frame (A) with cap screws and washers (B and C).

---




2. Tighten all cap screws to specification.

   Item	Measurement	Specification
   Cap Screws (B and C)	Torque	140 N·m (103 lb·ft)

3. Repeat procedure on the opposite side.
