Raising and Lowering Hood

Raising

1. Park machine safely.

2.
   LV25637-UN-05JUL16


   LV26200-UN-09SEP16

   Hood Lock

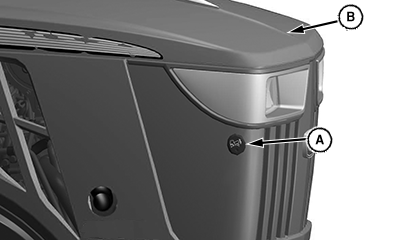

   A - Hood lock

   B - Hood

   Insert a screw driver into hood lock (A) to release latch.

---




3. Raise hood (B).

Lowering

Gently push down on both sides of front of hood to lock latch.
