Leveling Implement Side-to-Side

Use turnbuckle (A) on the right adjustable lift link (C) to level a 3-point hitch implement side-to-side.

  1. Park machine safely.

  2. Lower any rear mount implement to the ground.

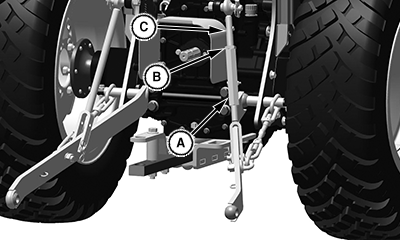

  3. LV25672
    LV25672-UN-13SEP16

    A - Turnbuckle

    B - Locknut

    C - Lift Link

    Rotate turnbuckle (A) to raise or lower draft link until 3-point hitch mounted implement is level from side-to-side.


  4. Tighten locknut (B) to secure position.

UP00731,0000320-19-20160909
