Park Brake Operation

CAUTION: Avoid Injury! Engage park brake and move transmission range shift lever to a position other than N (neutral) before leaving machine unattended. Transmissions will not prevent machine motion without the park brake engaged.

NOTE: Park brake reminder alarm (if equipped). If operator exits seat while engine is running, the park brake symbol will flash and an alarm will be heard for approximately 10 seconds.

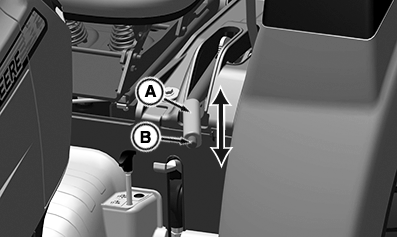

LV24990-UN-26JUL16

Park Brake Location Shown

A - Park Brake Lever

B - Park Brake Release Button

To release park brake, lift up on park brake lever and depress park brake release button (B). To fully disengage park brake, lower park brake lever completely, while park brake release button (B) is depressed.
