Information Display

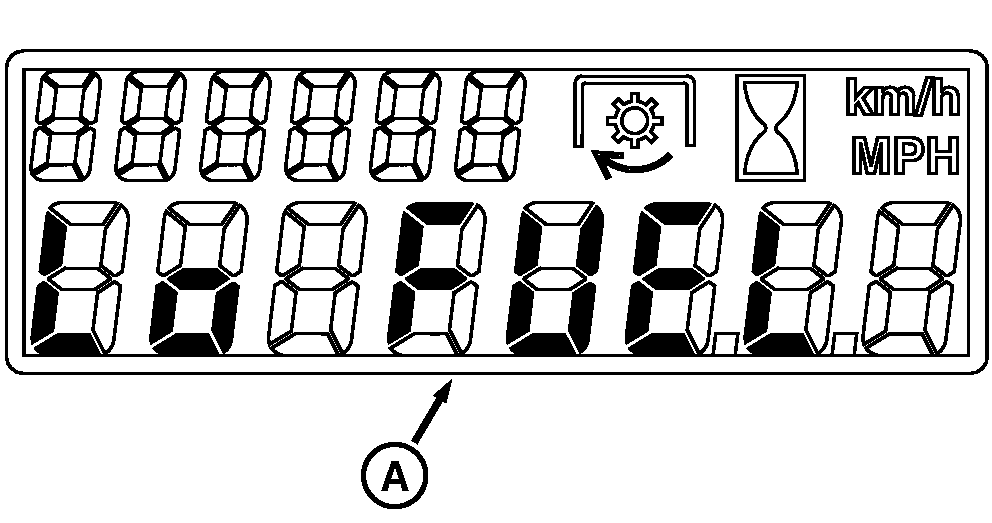

The information display screen (A) displays speedometer, hour meter, PTO hour, PTO speed, soot levels, regen information, operational status, warning messages, and fault information.

LV25550-UN-13JUN16

A - Information Display Screen

LV25050-UN-25APR16

1—Shift to neutral—Will display if attempting to start the tractor in gear. Will display if tractor is in gear during a parked exhaust filter cleaning.

2—PTO hours—Displays PTO hours.

3—Hitch on—Will display when hitch assist is engaged.

4—Hitch off—Will display when hitch assist is disengaged.

5—Engine speed—Will display when engine speed is too high, decrease RPM.

6—A-Range—Will display if tractor is not in A-range when hitch assist is engaged.

7—Right bulb error—Will display when there is a fault with right turn signal bulb or circuit.

8—Left bulb error—Will display when there is a fault with left turn signal bulb or circuit.

9—Engine hours—Displays engine hours.

10—Ground speed—Displays ground speed.

11—Vehicle hours—Displays vehicle hours.

12—Forward pedal—See a John Deere dealer.

13—Reverse pedal—See a John Deere dealer.

14—Throttle—See a John Deere dealer.

15—Forward coil—See a John Deere dealer.

16—Reverse coil—See a John Deere dealer.

17—Done—See a John Deere dealer.

18—Soot—Displays diesel particulate filter soot level.

19—Hours since last regeneration—Displays hours since last exhaust filter cleaning.

20—Shut PTO off—Displays if PTO is engaged during a parked exhaust filter cleaning or hitch assist is engaged.

21—Shift park brake on—Displays if park brake is not engaged during a parked exhaust filter cleaning or hitch assist is engaged.

22—Engine cold—Will display when engine temperature needs to be higher before performing a parked exhaust filter cleaning.

23—Engine speed high—Will display when engine speed needs to be lower before performing a parked exhaust filter cleaning.

24—ECU regeneration inhibited—Will display when exhaust filter cleaning can not be performed, see a John Deere dealer.

25—Pull coil fault—Will display when there is an error with the fuel shut off circuit, see a John Deere dealer.

26—Hold coil fault—Will display when there is an error with the fuel shut off circuit, see a John Deere dealer.

27—Start coil fault—Will display when there is an error with the starter relay circuit, see a John Deere dealer.

28—Engine speed to 1500—Will display during a parked exhaust filter cleaning. Adjust engine RPM to 1500 for optimal filter cleaning.

29—Engine is running—Displays when attempting to start the engine when engine is running.

30—PTO coil fault—Will display when there is a PTO solenoid circuit fault, see a John Deere dealer.

31—RIO on—This will display when RIO switch is enabled while mid-PTO is engaged.

32—Low Fuel—Will display when fuel level is below 1/8 of a tank.

33—Both pedals depressed—Displays when both reverse and forward HST pedals are being pressed at the same time.

34—Out of seat—Displays when tractor is engaged in forward or reverse while operator is out of seat.

35—No speed—Displays when the tractor is engaged in forward or reverse and no ground speed detected.

36—Shift to neutral—Will display if attempting to start the tractor in gear. Will display if tractor is in gear during a parked exhaust filter cleaning.

37—High speed—Displays when ground speed exceeds limit for shuttle shifting.

38—Low oil pressure—Displays when low engine oil pressure is detected.

39—Oil pressure disconnected—Displays when oil pressure signal is not detected. See a John Deere dealer.

40—Engine over heat—Displays when engine temperature is too high. Wait for engine to cool before operating tractor.

41—Recovery regenertion is prohibited—Displays when parked exhaust filter cleaning is prohibited. See a John Deere dealer.

42—Stationary regeneration required—Displays when parked exhaust filter cleaning is required.

43—Pre-heat coil fault—Displays when there is an error with the cold starting relay circuit, see a John Deere dealer.
