Using Throttle

LV16707
LV16707-UN-28FEB13

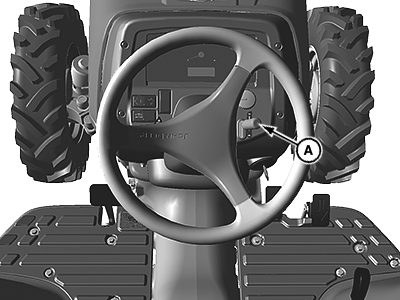

A - Throttle Lever

Use throttle to change engine speeds. Use throttle in conjunction with tachometer to set engine speeds.

  • Increase Engine Speed - Push throttle lever (A) towards front of machine.
  • Decrease Engine Speed - Pull throttle lever (A) towards rear of machine.

Engine/Tachometer Speeds



3025E

3032E

3038E

Low Idle

1200 rpm

950 rpm

950 rpm

Rated

2400 rpm

2500 rpm

2500 rpm

Fast Idle

2600 rpm

2650 rpm

2650 rpm
