Adjusting Seat

To avoid accidents, adjust seat before driving.

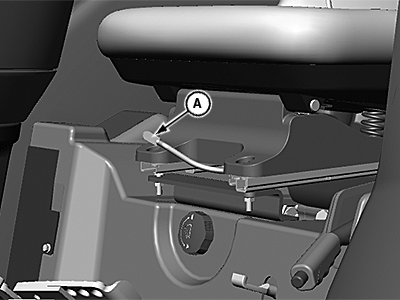

M—Model Open Station

LV17822-UN-20MAY13

M—Model

A - Adjustment Lever

Adjust to each operator's personal preference.

Forward or Backward: Slide adjustment lever (A) to the left to move seat to desired position.

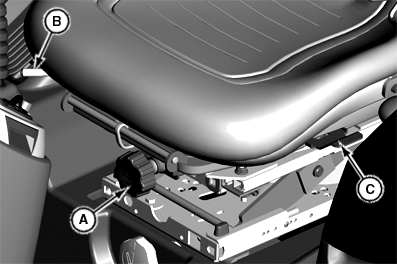

R—Model Open Station

LV21354-UN-14MAR14

R—Model

A - Weight Adjustment Knob

B - Adjustment Lever

C - Swivel Control Lever

Adjust to each operator's personal preference; there are three available seat adjustments:

Weight: While seated, turn weight adjustment knob (A) to adjust seat travel.

Forward or Backward: Pull adjustment lever (B) forward to move seat to desired position.

Swivel: Lift swivel control lever (C) up to turn seat.

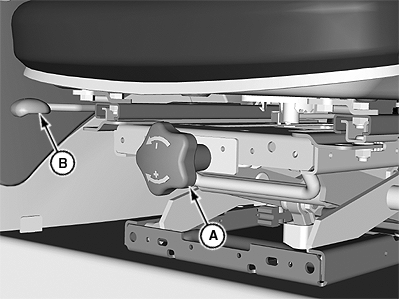

Standard Seat Adjustment—Cab

LV19988-UN-27NOV13

A - Weight Adjustment Knob

B - Adjustment Lever

Adjust to each operator's personal preference; there are two available seat adjustments:

Weight: Turn knob (A) clockwise or counterclockwise to reach desired suspension travel for operator weight. Adjust so seat does not bottom out when properly adjusted.

Forward or Backward: Lift adjustment lever (B) to move seat to desired position.

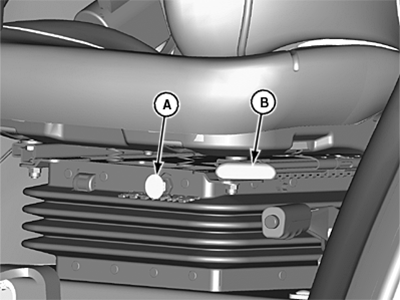

Deluxe Seat Adjustment—Cab

LV17825-UN-20MAY13

A - Weight Adjustment Knob

B - Adjustment Lever

Adjust to each operator's personal preference; there are two available seat adjustments:

Weight: While seated with the engine running, pull weight adjustment knob (A) out to increase air pressure. Push adjustment knob in to decrease air pressure. Release knob to lock in position.

Forward or Backward: Lift adjustment lever (B) up to move seat to desired position.
