Using eThrottle—If Equipped

LV17696-UN-03MAY13

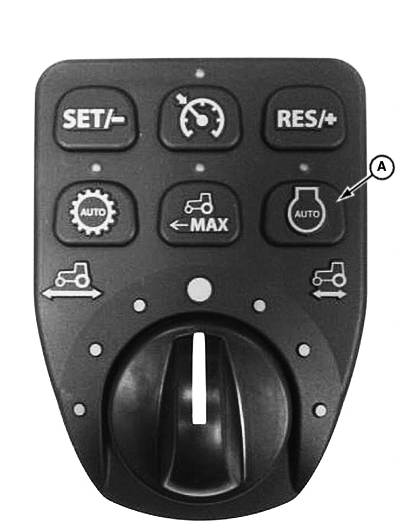

A - eThrottle Switch

Avoid injury! When eThrottle is engaged, speed increases as travel pedals are depressed.

Using eThrottle enables the operator to increase or decrease the speed of the tractor by using the forward and reverse travel pedals.

Using eThrottle is not recommended during PTO applications. With eThrottle engaged, constant PTO RPM cannot be maintained, which will result in reduced performance of implement.

Press eThrottle switch (A) to engage.

Press again to disengage.
