Changing Engine Oil and Filter

1.

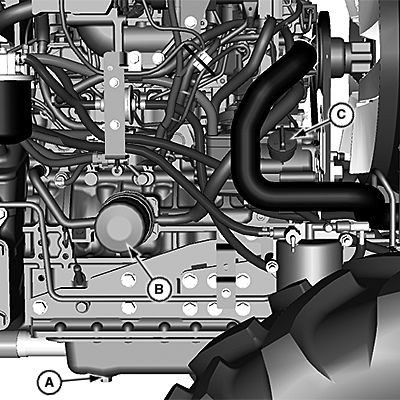

   LV17920-UN-30MAY13

   A - Oil Drain Plug

   B - Oil Filter

   C - Oil Fill Cap

   Run engine to warm the oil.

---




2. Park machine safely.

3. Remove right side panel.

4. Place drain pan under oil drain plug (A), located on underside of engine.

5. Remove drain plug.

6. Wipe dirt from around oil filter (B).

7. Turn filter counterclockwise to remove.

8. Put a light coat of clean engine oil on gasket of new filter.

9. Install replacement oil filter by turning filter clockwise until gasket contacts filter base. Tighten additional 1/2 turn.

10. Install drain plug. Do not overtighten.

    Drain Plug	Torque	54 N·m (40 lb·ft)

11. Remove oil fill cap (C).

12. Add engine oil to specification.

13. Install oil fill cap.

14. Start and run engine at idle to check for leaks.

15. Stop engine. Fix any leaks before operating.

16. Check engine oil level. Add oil if necessary.

17. Install right side panel.
