Use PowrReverser Shuttle Control—If Equipped

LV20930-UN-04FEB14

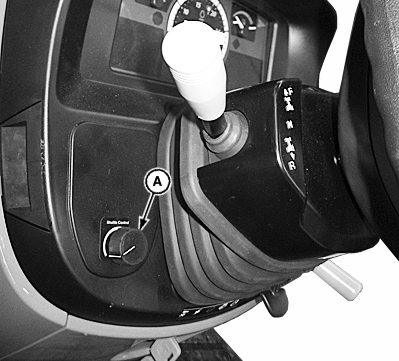

A - PowrReverser Shuttle Control

PowrReverser™ shuttle control switch (A) adjusts load take-up and acceleration when making directional changes with Reverser lever, during repetitive cycle work such as loader operation:

• In full left (counterclockwise) position (as shown), load take-up and acceleration ramp-up are slower to respond.
• When operating with high load and ballast, turn control knob clockwise to increase acceleration ramp-up and load take-up response.

Premature tire wear can occur when operating in full right (clockwise) position on concrete or paved surfaces.
