Replacing Light Bulbs—Open Station

Replacing 4M Tail/Turn Light Bulb

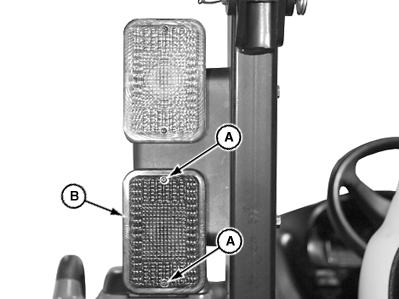

LV18515-UN-31JUL13

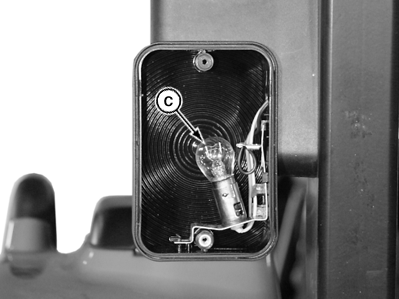

LV18516-UN-31JUL13

A - Screws

B - Red Lens

C - Bulb

1. Park machine safely.

2. Remove two screws (A) and red lens (B).

3. Push down and rotate bulb (C) to remove. Do not twist bulb.

4. Push down and rotate new bulb into socket.

5. Check operation of tail lights and turn signals.

6. Install lens and screws.

Replacing Warning Light Bulb

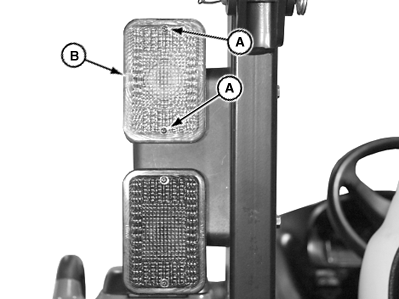

LV18517-UN-31JUL13

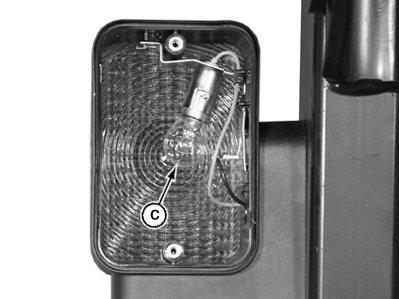

LV18518-UN-31JUL13

A - Screws

B - Amber Lens

C - Bulb

1. Park machine safely.

2. Remove two screws (A) and amber lens (B).

3. Push up and rotate bulb (C) to remove. Do not twist bulb.

4. Push up and rotate new bulb into socket.

5. Check operation of turn signals and warning lights.

Replacing 4R Tail/Turn and Warning Light Bulb

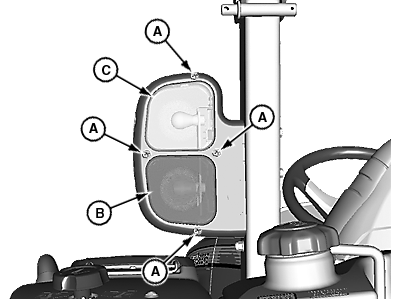

LV17631-UN-31JUL13

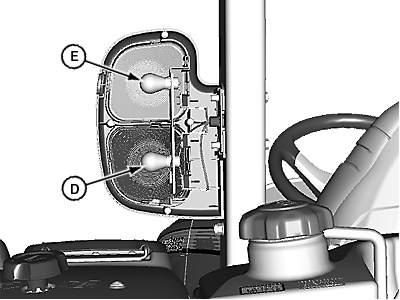

LV17632-UN-31JUL13

A - Screws

B - Red Lens

C - Amber Lens

D - Tail Light and Turn Signal Bulb

E - Warning Light Bulb

Tail lights and warning lights can be serviced by removing the rear assembly lens only.

1. Park machine safely.

2. Remove four screws (A), red lens (B), and amber lens (C).

3. Push down and rotate tail light and turn signal bulb (D) to remove. Push down and rotate warning light bulb (E) to remove. Do not twist bulb.

4. Push down and rotate new bulb into socket.

5. Check operation of tail lights, turn signals, and warning lights.

6. Install lenses and screws.
