Using LoadMatch—(4044R, 4052R, 4066R)

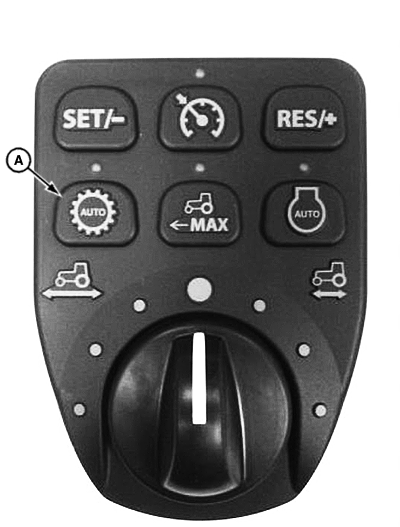

LV17697-UN-03MAY13

A - LoadMatch Switch

LoadMatch™ enables the operator to prevent the engine from stalling during heavy load applications such as operating with a loader.

Engaging LoadMatch

1. Determine if a heavy load application will be performed.

2. Press LoadMatch switch (A).

Disengaging LoadMatch

Press LoadMatch switch.
