Using MotionMatch—(4044R, 4052R, 4066R)

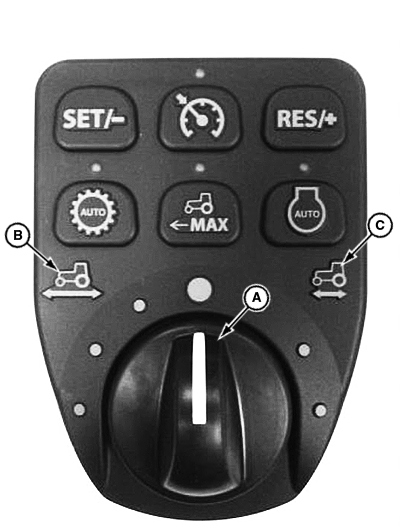

LV17699-UN-03MAY13

A - MotionMatch Switch

B - Longer Distance Icon

C - Shorter Distance Icon

MotionMatch™ enables the operator to adjust machine acceleration and deceleration rates. Shorter starting and stopping distances can be set for applications requiring rapid changes in direction, such as operating with a loader. Longer starting and stopping distances can be set to avoid turf damage in other applications.

• Turn MotionMatch switch (A) toward the longer distance icon (B) for longer acceleration and deceleration distances.
• Turn MotionMatch switch (A) toward the shorter distance icon (C) for shorter acceleration and deceleration distances.
