Using LoadMatch—(4044M, 4052M, 4066M)

LoadMatch™ enables the operator to prevent the engine from stalling during heavy load applications such as operating with a loader.

Engaging LoadMatch

1. Determine if a heavy load application will be performed.

2. Turn key switch on.

3.

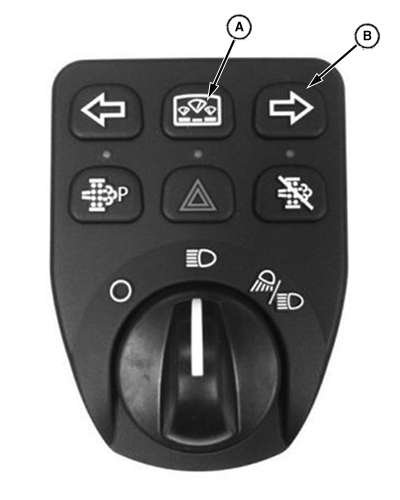

   LV25108-UN-05MAY16

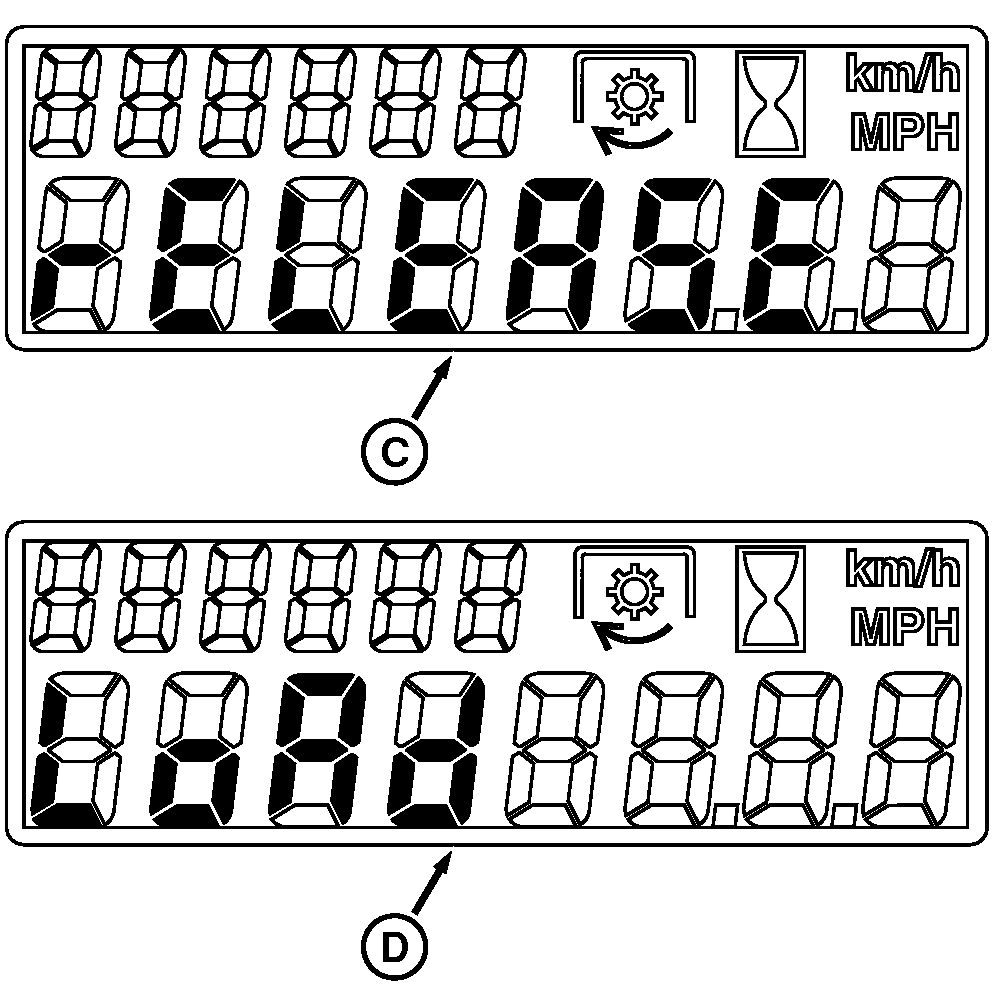

   LV25109-UN-05MAY16

   A - Display Mode Switch

   B - Right Turn Switch

   C - Release

   D - Load

   No error codes should be displayed. If any errors are displayed, activate the display mode switch (A) to acknowledge the error.

---




4. Press and hold the display mode switch until the display reads release (C).

5. Press and hold the right turn switch (B) until the display reads load (D).

6. Press the display mode switch to select.

7.

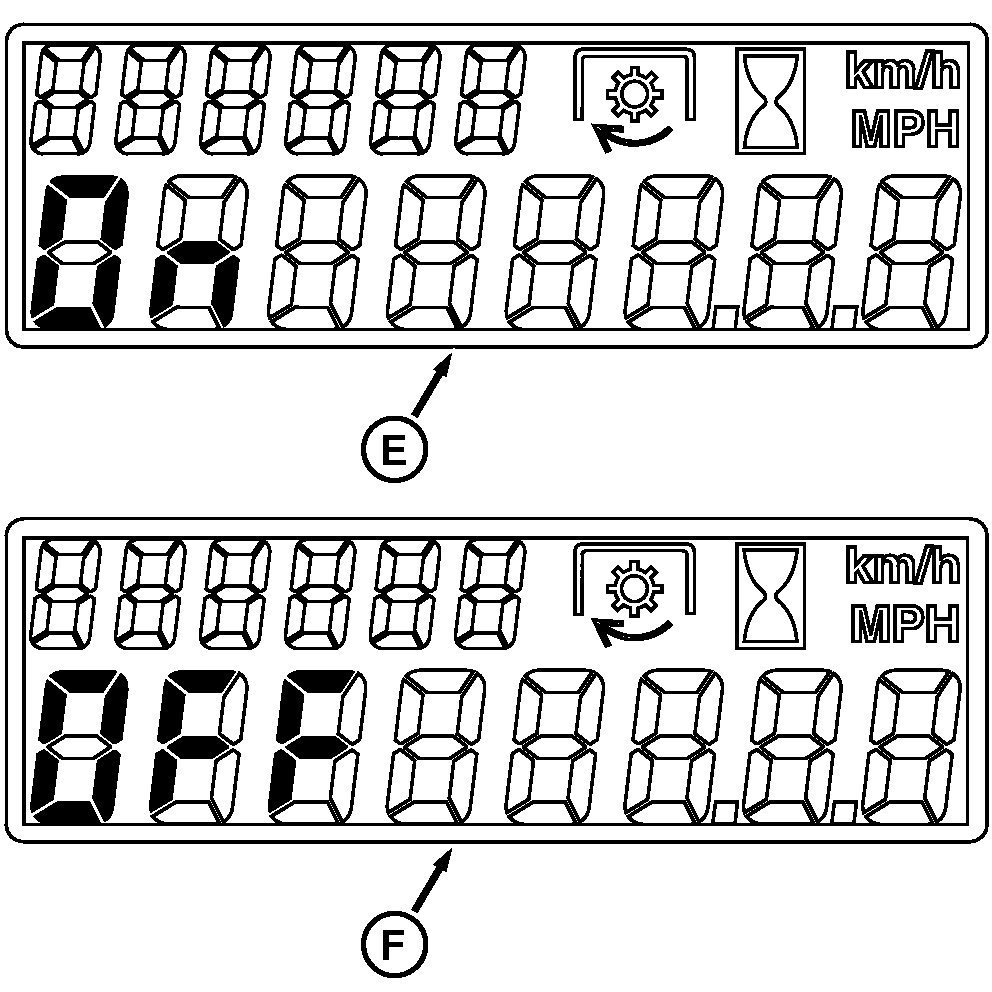

   LV25110-UN-05MAY16


   LV25111-UN-05MAY16

   E - On

   F - Off

   G - Load / Load On

   Press the right turn switch to turn LoadMatch on (E) and off (F).

---




8. When the desired setting is displayed, activate the display mode switch to store the setting.

9. The display will read load / load on (G).
