Using MotionMatch—(4044M, 4052M, 4066M)

MotionMatch™ enables the operator to adjust machine acceleration and deceleration rates. Shorter starting and stopping distances can be set for applications requiring rapid changes in direction, such as operating with a loader. Longer starting and stopping distances can be set to avoid turf damage in other applications. .

1. Turn key switch on.

2.
   LV25108-UN-05MAY16

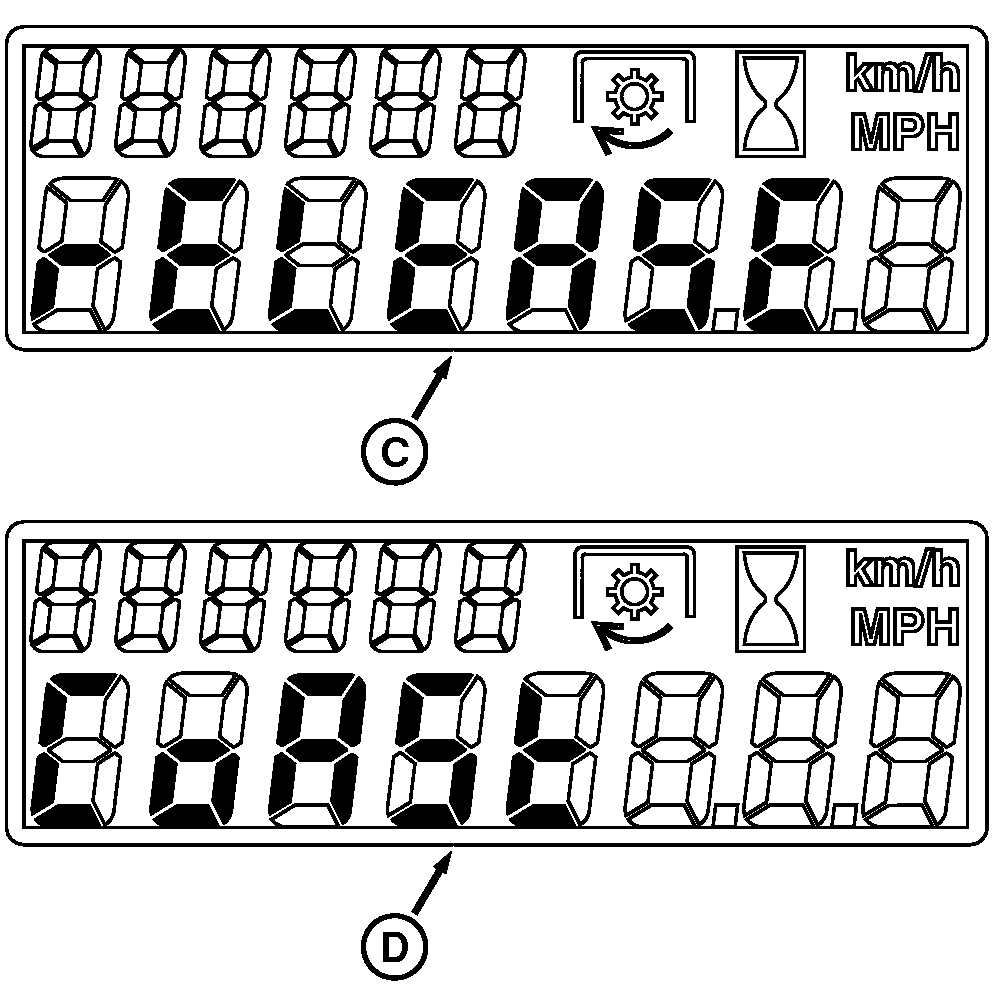

   LV25112-UN-06MAY16

   A - Display Mode Switch

   B - Right Turn Switch

   C - Release

   D - Coast

   No error codes should be displayed. If any errors are displayed, activate the display mode switch (A) to acknowledge the error.

---




3. Press and hold the display mode switch until the display reads release (C).

4. Press and hold the right turn switch (B) until the display reads coast (D).

5. Press the display mode switch to select.

6.

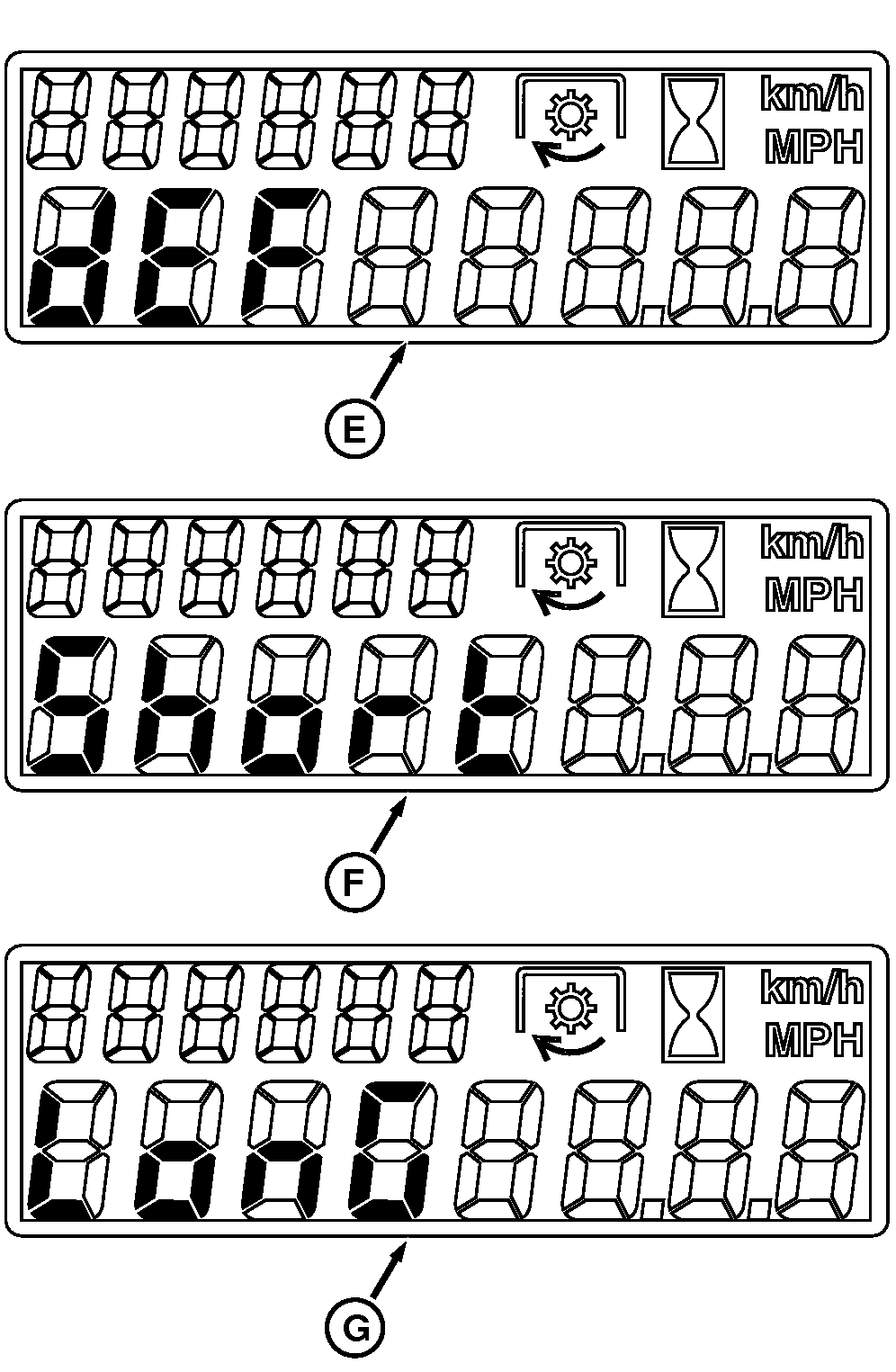

   LV25113-UN-05MAY16

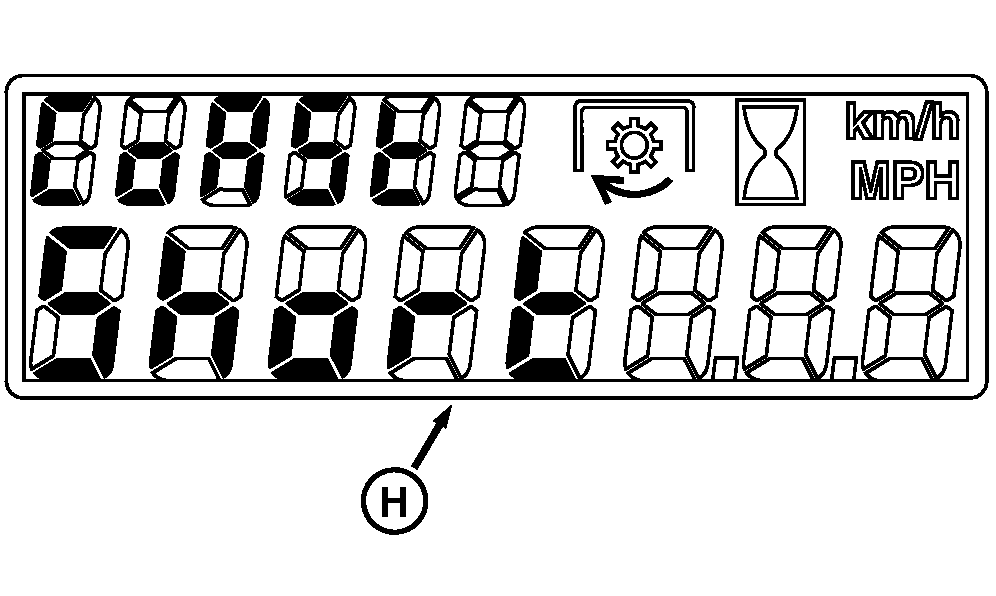

   LV25114-UN-06MAY16

   E - Default

   F - Short

   G - Long

   H - Coast / Short

   Press the right turn switch to change the desired setting between default (E) short (F) and long (G).

   1. A MotionMatch setting of short is the shortest rolling (starting/stopping) distance.

   2. A MotionMatch setting of long is the longest rolling (starting/stopping) distance

---




7. When the desired setting is displayed, activate the display mode switch to store the setting.

8. The runtime menu will have a new item of coast / short (H).
