Check Selective Control Valve

1.
   LV28978-UN-19JUL17

   Mid-Mount SCV Couplers


   LV28979-UN-19JUL17

   Rear Third SCV Couplers (If Equipped_

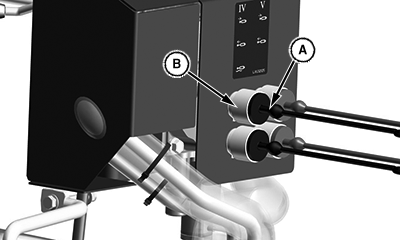

   LV28980-UN-19JUL17

   Fourth and Fifth SCV Couplers (If Equipped)

   A - Dust Plugs

   B - Coupler

   Check dust plugs (A) for damage, replace as needed.

---




2. Clean dirt and debris from selective control valve couplers (B)

3. Check selective control valve couplers (B) for oil leakage. Contact your John Deere dealer for service.
