Foot Operated Controls

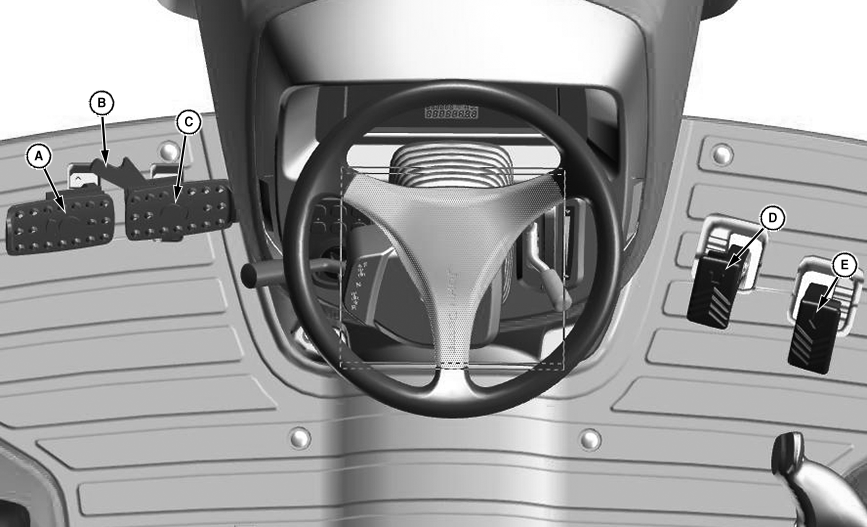

LV28001-UN-22MAR17
A - Left Brake Pedal
B - Brake Pedal Lock Tab
C - Right Brake Pedal
D - Forward Travel Pedal
E - Reverse Travel Pedal
|
UP00731,000027F-19-20170809 |
Foot Operated Controls
A - Left Brake Pedal B - Brake Pedal Lock Tab C - Right Brake Pedal D - Forward Travel Pedal E - Reverse Travel Pedal
|
