Use Park Brake

Locking Park Brake

Avoid injury! Always lock park brake and move transmission range shift lever to a position other than N (neutral) before leaving machine unattended. Transmission will not prevent machine motion without the park brake locked.

1. Lock both brake pedals together using brake pedal lock (A).

2.

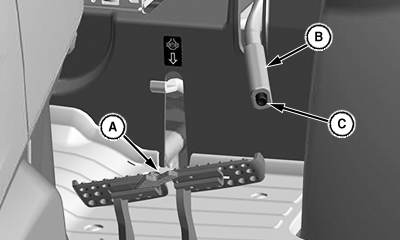

   LV28070-UN-27MAR17

   Hydrostatic Transmission Park Brake

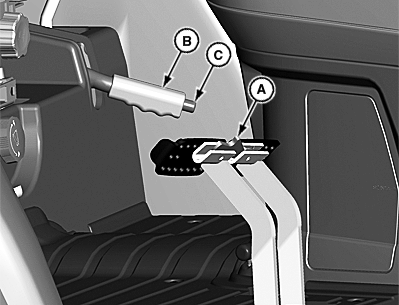

   LV20853-UN-03FEB14

   PowrReverser™ Transmission Park Brake

   A - Brake Pedal Lock

   B - Park Brake Lever

   C - Park Brake Release Button

   Pull park brake lever (B) up to the locked position. The park brake light should illuminate if the key switch is turned on.

---




3. Remove foot from brake pedals.

Unlocking Park Brake

1. Press down on brake pedals with foot.

2. Push park brake release button (C), and lower park brake lever (B) to the unlocked position. Park brake light should be off.

3. Remove foot from brake pedals.
