Using Loader with Front Hitch—If Equipped

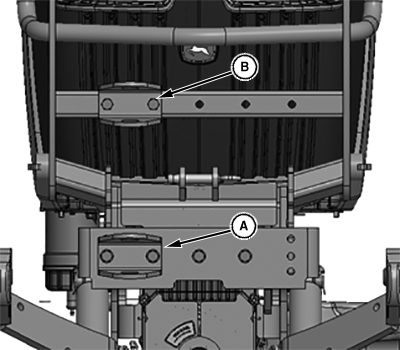

  1. LV23632
    LV23632-UN-06JAN15

    A - Tractor Frame

    B - Hood Guard

    Place hitch in storage position, see Storing section.


  2. Relocate tow hook from tractor frame (A) to hood guard (B).

  3. Attach loader per loader operation instruction.

UP00731,00002C5-19-20150108
