Using Front 3-Point Hitch—If Equipped

Using Rate of Drop Adjustment

LV23871-UN-04MAR15

A - Jam Nut

B - Valve Body

C - Valve

Using Transport Lock Position

To place hitch in transport lock position, fully raise hitch and rotate valve (C) to the lock position.

Raising and Lowering Hitch

1. Check to be sure that hitch is not in transport lock position.

2. Review instructions on using hydraulic dual selective control valve (SVC) and dual selective control valve lock lever included in your tractor operator’s manual.

3. Move tractor dual SCV lever:

   • To raise hitch, move lever rearward.
   • To lower the hitch, move the leaver forward.



Using Front Hitch Storage Position

The front hitch may remain installed on the tractor when not in use.

To change front hitch to storage position:

1. Raise hitch to highest lift position.

2. Move ball valve to transport locked position.

3. Remove A-frame if installed.

4.
   LV19398-UN-18OCT13

   A - Lift Frame

   B - Spring Clips

   C - Brackets

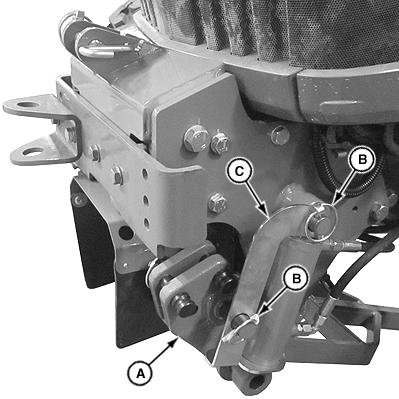

   Remove lift arms from lift frame (A) and center link from tractor, set aside for future use.

---




5. Remove left and right cylinder retaining spring clips (B) from lift frame cylinder pins and hitch frame cylinder pins.

6. Rotate lift frame (A) upward and secure with left and right hitch storage brackets (C).

7. Replace left and right cylinder spring clips (B).

8.
   LV23636-UN-20NOV15

   D - Storage Bracket

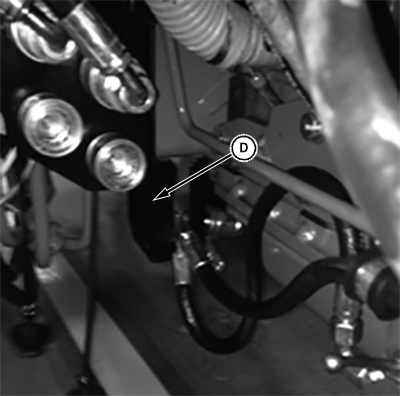

   Disconnect front hitch cylinder hydraulic hoses from tractor and place in storage bracket (D).

---




9.
   LV23635-UN-06JAN15

   E - Storage Bracket

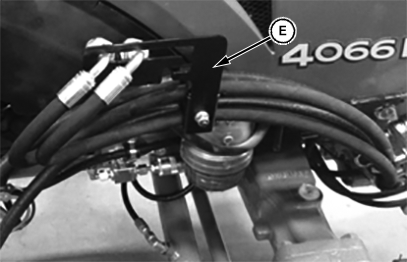

   If mid connect front coupler kit is installed, use storage bracket (E).

---




10.
    LV23633-UN-06JAN15

    F - Storage bracket for open station tractors

    G - Storage bracket for cab tractors

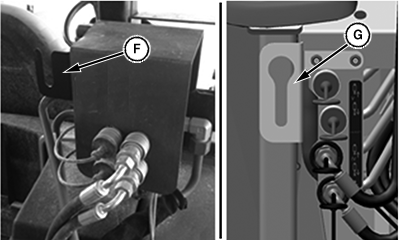

    If rear connect front coupler kit is installed, use storage bracket (F) for open station tractors and storage bracket (G) for cab tractors .

---
