Using Front Hitch Lift Arms—Category 1—If Equipped

1.

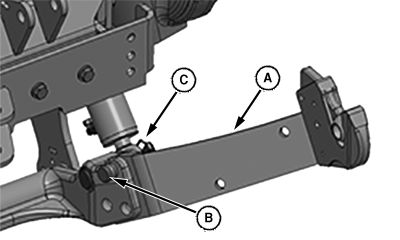

   LV23644-UN-07JAN15

   A - Lift Arm

   B - Lift Arm Pin

   C - Locking Pin

   Place lift arm (A) into lift frame fork. Insert upper lift arm pin (B) through fork and lift arm, secure with locking pin (C).

---




2. Category 1 lift arms may be installed in fixed position or float position.

   1. If torsion tube is to be installed, arms must be installed in fixed position, not float position.

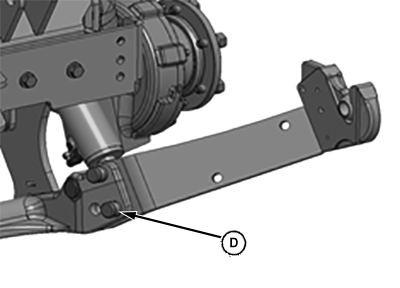

      LV23645-UN-07JAN15

      D - Lift Arm Pin

      Category 1 lift arms: To install lift arms into float position, insert second lift arm pin (D) into forward lower hole.

   ---




   2.

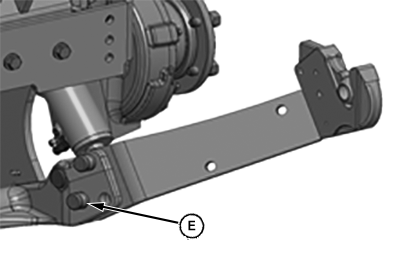

      LV23646-UN-07JAN15

      E - Lift Arm Pin

      Category 1 lift arms:To install lift arms into fixed position, insert second lift arm pin (E) into rearward lower hole.
