Use Rate-of-Drop

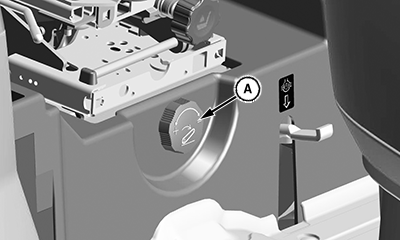

LV28083-UN-11MAY17

HST Shown; PRT Similar

A - Rate-of-Drop/Lock Valve Knob

Avoid injury! Excessive rate-of-drop may cause injury or damage. Fully lowering implement takes at least 2 seconds.

The rate-of-drop/lock valve controls the rate of rockshaft drop when rockshaft control lever is operated. This valve provides direct rate-of-drop control for 3-point hitch mounted implements. the valve can be used to hydraulically lock rockshaft from lowering (3-point hitch) in a desired position. The tractor can be operated with rate-of-drop/lock valve closed. The rockshaft can be raised with the rate-of-drop/lock valve closed.

Increase Rate-of-Drop: Rotate rate-of-drop/lock valve knob (A) counterclockwise to make drop faster.

Decrease Rate-of-Drop: Rotate rate-of-drop/lock valve knob (A) clockwise to make drop slower.

Avoid injury! Do not use the rate-of-drop/lock valve knob for holding an attachment in raised position for service work. Loss of hydraulic pressure could result in sudden drop of attachment. Lower attachment onto blocks or remove from machine before servicing.

Lock 3-Point Hitch: Rotate rate-of-drop/lock valve knob (A) clockwise until tight.

Unlock 3-Point Hitch: Rotate rate-of-drop/lock valve knob (A) counterclockwise.
