Level Hitch

Level Implement Front-to-Rear

1. Park machine safely.

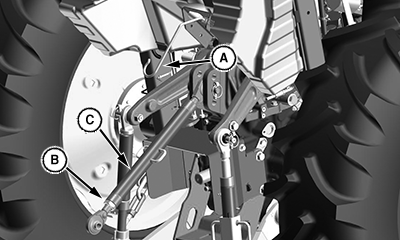

2. When the 3-point hitch is not being used, return center link to storage hook (A).


   LV29107-UN-08AUG17

   A - Storage Hook

   B - Lock Nut

   C - Center Link Body

   Lower implement to ground to relieve pressure on center link.

---




3. Loosen lock nut (B).

4. Avoid damage! Do not turn center link body past the stops, or threads may be damaged.

   Rotate center link body (C) to lengthen or shorten the center link until implement is level from front to rear.

5. Tighten lock nut (B).

Level Implement Side-to-Side

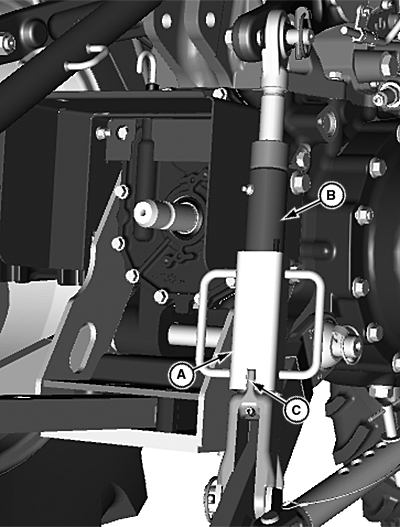

Use turnbuckle collar (A) on the right adjustable lift link (B) to level a 3-point hitch implement side-to-side.

1.
   LV17873-UN-23MAY13

   A - Turnbuckle Collar

   B - Lift Link

   C - Turnbuckle Collar Lock

   Park machine safely.

---




2. Lower any rear-mounted implement to the ground.

3. Slide up and rotate turnbuckle collar (A) to raise or lower draft link until 3-point hitch mounted implement is level from side to side.

4. Slide down and line up the slot in turnbuckle collar (A) with turnbuckle collar lock (C) to secure position.
