Adjust Hitch Side Sway

Adjust Implement Side-to-Side Sway Chains

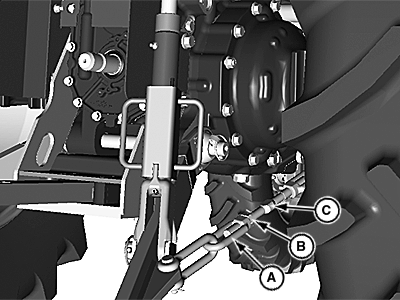

LV17877-UN-23MAY13

A - Sway Link

B - Lock Nut

C - Sway Link Adjusting Rod

Check implement operator’s manual procedure for adjusting sway links. When sway links have been properly adjusted, side sway of implement is controlled by position of links. A small amount of sway, 13—25 mm (1/2—1 in.), is needed for many implements.

Use left and right sway links (A) to adjust 3-point hitch implement side-to-side sway.

1. Park machine safely.

2. Lower any rear-mounted implement to the ground.

3. Loosen lock nut (B).

4. Rotate sway link adjusting rod (C) to adjust 3-point hitch implement side-to-side sway.

5. Tighten lock nut (B).

Adjust Implement Side-to-Side Sway Bars

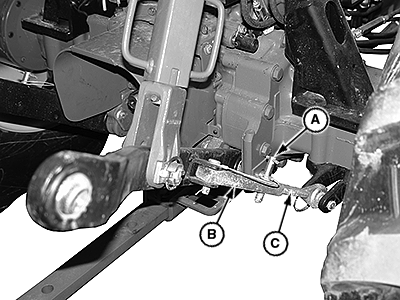

LV17577-UN-29APR13

A - Locking Pin

B - Sway Link Adjusting Shaft

C - Sway Link

Check implement operator’s manual procedure for adjusting sway links. When sway links have been properly adjusted, side sway of implement is controlled by position of links. A small amount of sway, 13—25 mm (1/2—1 in.), is needed for many implements.

Use left and right sway links (C) to adjust 3-point hitch implement side-to-side sway.

1. Park machine safely.

2. Lower any rear-mounted implement to the ground.

3. Remove locking pin (A).

4. Slide stabilizer sway link adjusting shaft (B) to adjust 3-point hitch implement side-to-side sway.

5. Replace locking pin (A).
