Using Power Beyond Outlet—If Equipped

Avoid damage! Return oil from all circuits must return to either of two tank ports at the rear of the rockshaft manifold.

Routing return oil directly to sump will result in machine damage.

Do not return oil to the fill port or any other location.

Power beyond is designed for applications where continuous high volume hydraulic oil flow is needed.

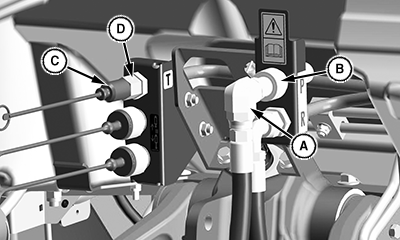

Connecting to Power Beyond

LV28970-UN-12JUL17

A - Hose

B - Coupler

C - Outlet Cover

D - Power Beyond Coupler

1. Shut off engine.

2. Remove hose (A) from coupler (B).

3. Remove outlet cover (C) and place hose (A) into cover.

4. Attach implement pressure hose to power beyond coupler (B).

5. Attach implement return hose to coupler (D).

When not in use, plug hose end into coupler for storage.

Parts for this attachment are available from your John Deere dealer.
