Using Diverter I, II, and III Rear Outlets—If Equipped

LV18042-UN-11JUN13

LV29388-UN-07SEP17

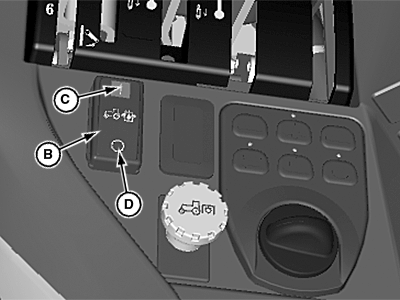

Open Operator Station Diverter Switch

LV18044-UN-11JUN13

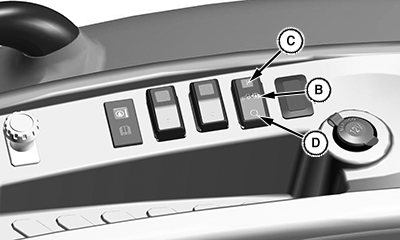

Cab Diverter Switch

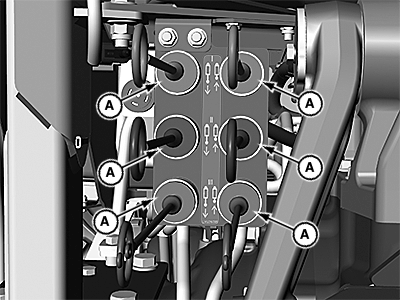

A - Hydraulic Outlets

B - Activation Switch

C - Indicator Light

D - Bottom of the Activation Switch

Avoid injury! Escaping fluid under high pressure can penetrate the skin and cause serious injury. Avoid the hazard by relieving pressure before connecting hydraulic or other lines. Tighten all connections before applying pressure.

• Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

• If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A. In the United States and Canada only, this information may be obtained by calling 1-800-822-8262.

Continuous flow will not be available to the rear outlets on machines equipped with the third selective control valve and the diverter option.

This machine model series can be equipped with an optional diverter I, II, and III rear outlet kit to operate hydraulically driven implements with the SCV lever.

The machine-mounted hydraulic outlets (A) are female quick couplers.

If the key switch is moved to the off position, the dual SCV lever will default to operating the mid SCV outlets. The key switch must be moved to the run position and the diverter system re-activated to operate the diverter I, II, and III rear outlets.

1. Press the top of the diverter I, II, and III rear outlet activation switch (B) to activate the I, II, and III rear outlets. The switch indicator light (C) will go on.

2. Use the SCV lever to operate attachments connected to the diverter I, II, and III rear outlets.

3. Press the bottom of the activation switch (D) to disable the rear outlets. The switch indicator light will go off and the mid SCV outlets will be activated.

Relieving Pressure

To relieve pressure in the rear outlets

1. Place implement on ground.

2. Engine running and diverter engaged.

3. Press and hold diverter switch at location C throughout the next three steps.

   • Shut off engine.
   • Actuate mid SCV lever in front/back and left/right directions to relieve pressure, then put key switch back to run position.
   • Actuate 3rd SCV upper and lower switches to relieve pressure. This provides 20-30 seconds after engine shut down during which the pressure in the rear couplers can be relieved.
