Removing and Installing Battery

Removing Battery—OOS

1.

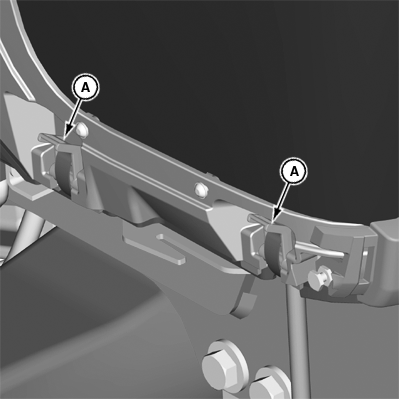

   LV17941-UN-04JUN13

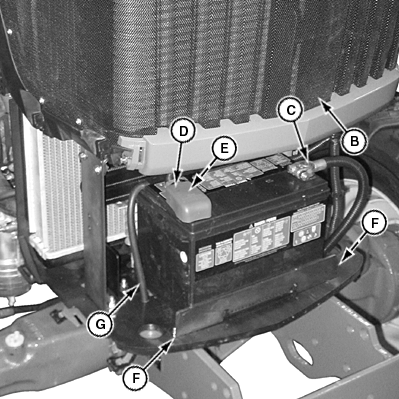

   LV17950-UN-04JUN13

   A - Grille Latch (4 used)

   B - Grille

   C - Black Negative Cable

   D - Red Positive Terminal Cover

   E - Red Positive Cable

   F - Bolt (2 used)

   G - Vent Tube

   Park machine safely.

---




2. Raise hood.

3. Remove side panels.

4. Release grille latch (A) and unhook from grill frame.

5. Disconnect headlight wiring harness.

6. Raise grill (B), rotate rearward, and lower slightly into slide track detentes.

7. Disconnect black negative (—) cable (C) from battery terminal first.

8. Slide red positive terminal cover (D) back and disconnect red positive (+) cable (E) from battery terminal.

9. Remove bolt (F) from each side of the battery hold-down bracket.

10. Pull battery vent tube (G) from battery tray.

11. Remove battery.

Installing Battery—OOS

1. Position battery in machine.

2. Route battery vent tube (G) through hole in battery tray.

3. Install hold-down bracket and install bolt (F) securing battery to battery tray.

4. Connect red positive (+) cable (E) to battery first, then attach black negative (—) cable (C) to battery.

5. Apply spray lubricant on battery terminals to help prevent corrosion.

6. Position red positive terminal cover (D) on red positive (+) cable.

7. Lower grille (B) and attach grille latch (A).

8. Connect headlight wiring harness.

9. Install side panels.

10. Lower hood.

Removing Battery—Cab

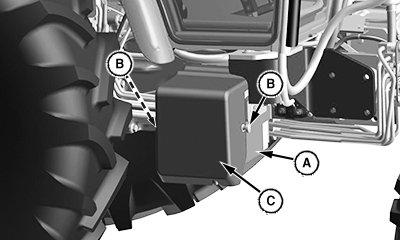

LV29113-UN-08AUG17

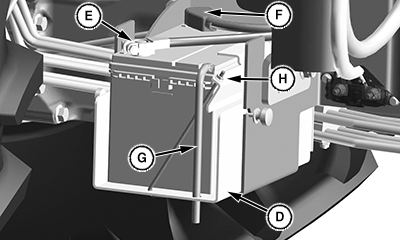

LV29114-UN-08AUG17

A - Battery Box

B - Thumb Screws

C - Battery Box Cover

D - Battery Tray

E - Negative (—) Battery Cable

F - Red Cover

G - Vent Tube

H - Nut

1. Park machine safely.

2. Locate battery box (A) on the right side of tractor.

3. Loosen thumb screws (B) on both sides of the battery box.

4. Slide battery box cover (C) off.

5. Slightly lift battery tray (D) and pull out.

6. Disconnect negative (-) battery cable (E).

7. Push red cover (F) back away from positive (+) battery cable and remove cable from battery.

8. Lift vent tube (G) from vent tube hole.

9. Remove nut (H) and remove battery hold down rod.

10. Remove battery.

Installing Battery—Cab

1. Position battery in battery tray.

2. Apply spray lubricant to terminals to prevent corrosion.

3. Connect positive (+) cable to battery positive (+) terminal first, then negative (—) cable to battery negative (—) terminal.

4. Slide red cover over positive battery cable.

5. Support battery tray and slide back into position slightly lifting.

6. Install battery hold down nut and battery hold down rod.

7. Slide vent tube into vent tube hole.

8. Slide battery cover on and tighten thumb screws.
