Use Optional Front Weights

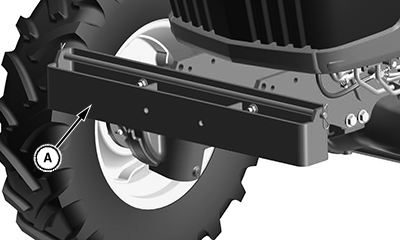

LV29130-UN-09AUG17

A - Front Weight Bracket

Avoid Damage! Do not install weights on front bumper plate. Damage to the front grille can occur. Use optional bolt-on weight bracket for front weights.

Quik-Tatch™ weights and attaching hardware are available at your John Deere dealer. Each weight is 19 kg (42 lb.) or 32 kg (70 lb.).

An optional front weight bracket extension kit (A) is available at your John Deere dealer. This optional front weight bracket extension kit holds up to ten Quik-Tatch weights.
