Replacing Light Bulbs


Replacing Bulbs in Front of Assembly

  1. Park machine safely. (See Parking Safely in Safety Section.)

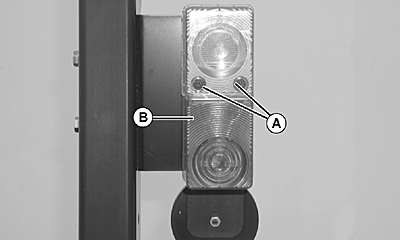

  2. LVAL39003
    LVAL39003-UN-07NOV12

    A - Screws

    B - Lens

    Remove two screws (A) and lens (B).

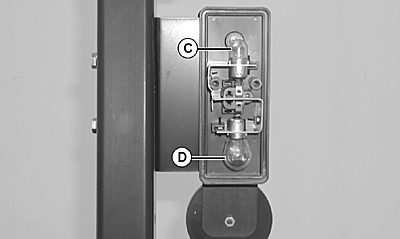

  3. LVAL39004
    LVAL39004-UN-07NOV12

    C - Light Bulb

    D - Turn Signal/Hazard Light Bulb

    Push in and rotate position light bulb (C) or turn signal/ hazard light bulb (D) to remove. Do not twist bulb.



  4. Install new bulb.

  5. Check operation of lights.

  6. Install lens and screws.


Replacing Bulbs in Rear of Assembly

  1. Park machine safely. (See Parking Safely in Safety Section.)

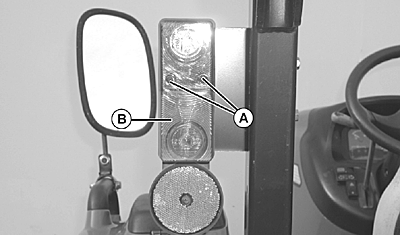

  2. LVAL39005
    LVAL39005-UN-07NOV12

    A - Screws

    B - Lens

    Remove two screws (A) and lens (B).

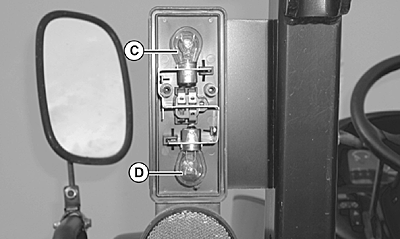

  3. LVAL39006
    LVAL39006-UN-07NOV12

    C - Light Bulb

    D - Turn Signal/Hazard Light Bulb

    Push in and turn taillight/brake light bulb (C) or turn signal/ hazard light bulb light (D) to remove. Do not twist bulb.



  4. Install new bulb.

  5. Check operation of lights.

  6. Install lens and screws.

UP00731,0000019-19-20130410
