Level Implement Side-to-Side

1. Lower any rear mount implement to the ground.

2. Park machine safely.

3.

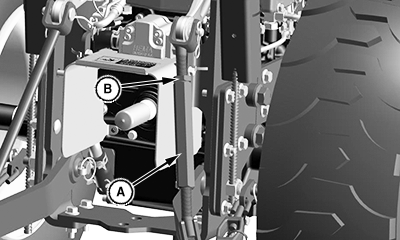

   LV26750-UN-15DEC16

   A - Lift Link Body

   B - Locknut

   Loosen locknut (B).

---




4. Rotate lift link body (A) to raise or lower draft link until 3-point hitch-mounted implement is level from side-to-side.

5. Tighten locknut (B).
