Adjust Implement Side-to-Side Sway

1. Check implement operator manual procedure for adjusting sway links. When sway links have been properly adjusted, the position of links control the side sway of the implement.

   Lower any rear mount implement to the ground.

2. Park machine safely.

3.

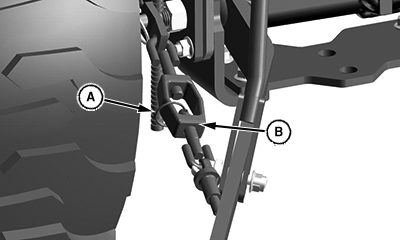

   LV26801-UN-10NOV16

   A - Locking Ring

   B - Turnbuckle

   Remove locking ring (A).

---




4. To adjust length, rotate the turnbuckle (B).

5. Install locking ring.
