Change Front Axle Oil

1. Warm front axle oil by operating machine.

2. Park machine safely.

3.

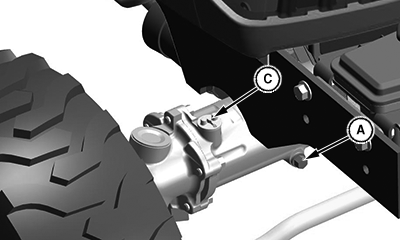

   LV26891-UN-16NOV16

   A - Drain Plug

   C - Dipstick

   Position drain pan under the differential drain plug (A).

---




4. Remove the differential drain plug and allow oil to drain.

5.

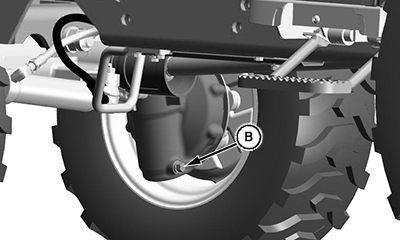

   LV26893-UN-16NOV16

   B - Drain Plug

   Position drain pan under each front axle drain plug (B).

---




6. Remove both drain plugs and allow oil to drain.

7. Install and tighten both drain plugs after all oil has drained.

8.

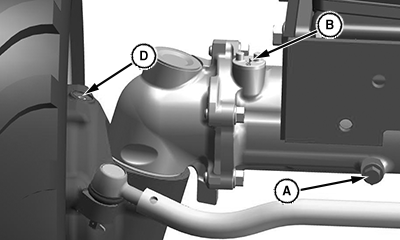

   LV26892-UN-16NOV16

   A - Drain Plug

   C - Dipstick

   D - Vent Plug

   Remove dipstick (C) on the right side of the front axle and vent plug (D).

---




9. Add approximately 2.8 L (3.0 qt) of recommended oil through dipstick fill opening until oil level is correct.

10. Install and tighten the dipstick.

11. To ensure accurate dipstick reading, allow oil to settle for 1 hour before checking. Repeat oil level check after several hours of operation.

    Check front axle oil level.
