Lubricate MFWD Driveshaft

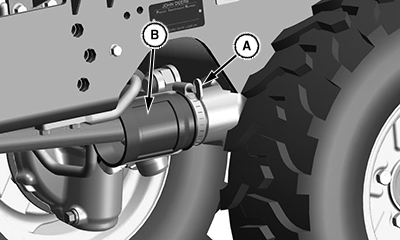

  • LV26895
    LV26895-UN-16NOV16

    Front MFWD Driveshaft Shield

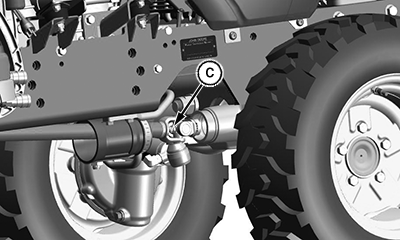

    LV26894
    LV26894-UN-16NOV16

    Front MFWD Driveshaft

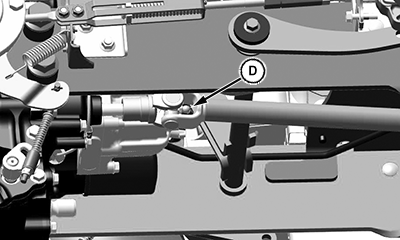

    LV26896
    LV26896-UN-16NOV16

    Rear MFWD Driveshaft

    A - MFWD Shield

    B - Front MFWD Driveshaft Shield

    C - Front MFWD Driveshaft Grease Fitting

    D - Rear MFWD Driveshaft Grease Fitting

    Loosen hose clamp (A) and remove front MFWD shield (B) from housing.
  • Lubricate front MFWD driveshaft grease fitting (C) and rear MFWD driveshaft grease fitting (D) with John Deere multi-purpose grease.
  • Install MFWD shield (B) on housing and tighten hose clamp (A).

UP00731,0000090-19-20170508
