Front Console Controls

LV27219-UN-18APR17

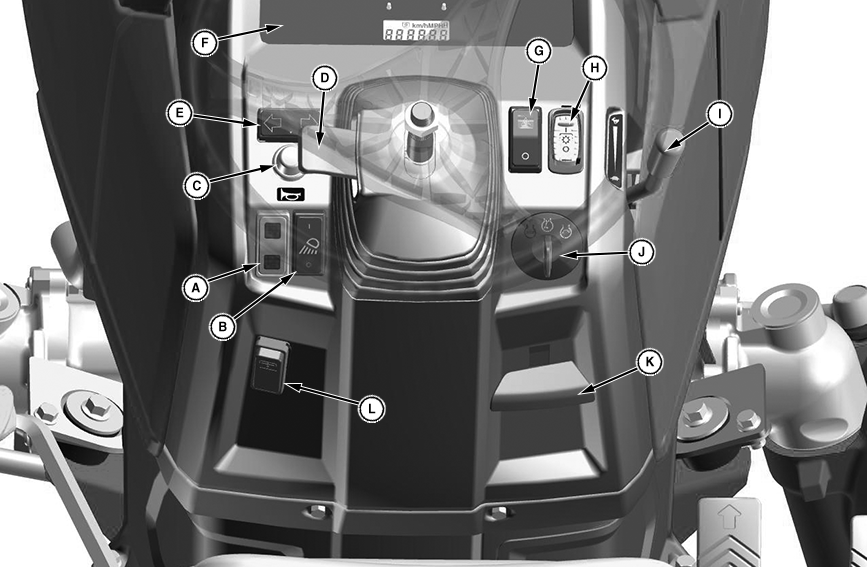

Front Console

A - Head Light Switch

B - Rear Work Light Switch

C - Horn Switch

D - Tilt Wheel Lever

E - Turn Signal Switch

F - Instrument Cluster

G - Hazard Switch

H - Power Take Off/Reverse Implement Option (PTO/RIO) Switch

I - Engine Speed Hand Throttle

J - Key Switch

K - Cruise Control Lever

L - Mower Lift Switch (If equipped)
