Operate Throttle

LV27263
LV27263-UN-11JAN17

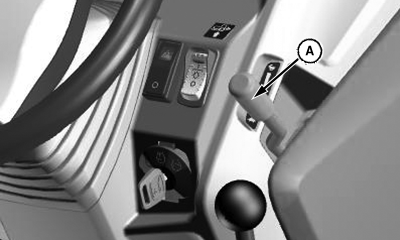

A - Throttle Lever

Use the throttle to change engine speeds. Use the throttle in conjunction with the tachometer to set engine speeds.

  • Increase Engine Speed - Push throttle lever (A) towards the front of the machine.
  • Decrease Engine Speed - Pull throttle lever (A) towards rear of the machine.

UP00731,0000138-19-20170110
