Operate Park Brake

Label on dash illustrates park brake operation.

• Avoid Injury! Always lock park brake and move transmission range lever to a position other than N (neutral) before leaving machine unattended. Transmissions do not prevent machine motion without the park brake being locked.

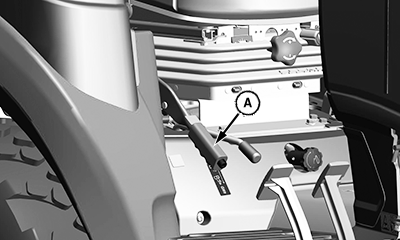

  LV27270-UN-11JAN17

  A - Park Brake Lever

  To Lock Park Brake: Pull park brake lever (A) up to the locked position.

---

• To Unlock Park Brake: Raise park brake lever (A) slightly, push the park brake lock in to unlock the park brake.
