Adjust Tilt Steering Wheel

1. Avoid Injury! Do not attempt to adjust the steering wheel while the machine is moving. The operator can lose control of the machine.

   • Stop the machine before adjusting the steering wheel.
   • Lock the steering wheel in position before driving the machine.



   Stop machine.

2. Pull tilt steering lever (A) up to release steering wheel.


   LV27271-UN-11JAN17

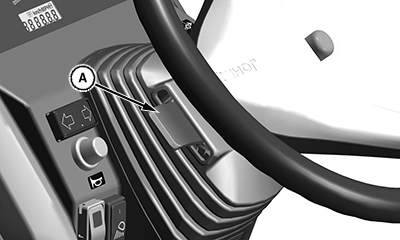

   Tilt Steering Lever Location Shown

   A - Tilt Steering Lever

---




3. Adjust the steering wheel to desired position.

4. Steering wheel is locked in position when the tilt steering lever is released.
