Use Seat Belt

Avoid injury! Always wear seat belt when operating machine with non-folding Roll-Over Protective Structure (ROPS) or folding ROPS in upright position. Do not jump from machine if machine tips.

If folding ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

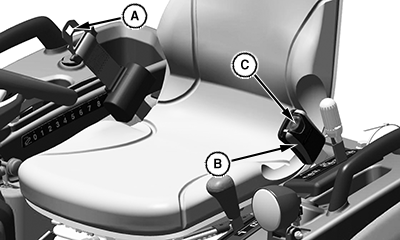

  1. LV27274
    LV27274-UN-11JAN17

    A - Seat Belt

    B - Latch

    C - Seat Belt Release

    To fasten the seat belt: Extend the self-retracting seat belt (A) and insert it into the latch (B) on the opposite side of the seat. The seat belt is self-retracting and it automatically adjusts to fit the operator.
  2. To release the seat belt: Press the seat belt release (C) on the buckle.

UP00731,0000142-19-20170221
