Operate Rear Hitch

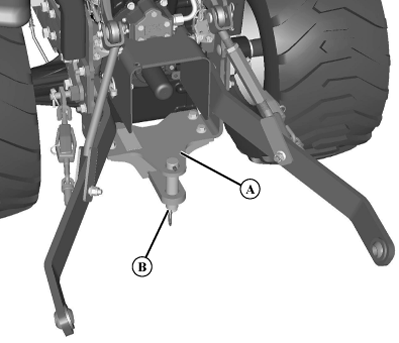

LVAL38769-UN-09OCT12
A - Rear Hitch Plate
B - Pin
The rear hitch plate (A) and pin (B) provides a single fixed mounting position for towing.
Avoid Injury! Hitch towed loads only to the rear hitch
plate to avoid rearward upset. Do not use a safety chain for towing
loads.
Maximum Hitch Loads
Certain heavy equipment such as a loaded single-axle trailer can place excessive strain on the hitch. Strain is greatly increased by speed and rough ground. Do not exceed the maximum static vertical load on the rear hitch at pin position (B), see specifications.
|
